MIDLAND INDUSTRIES 943312 943312

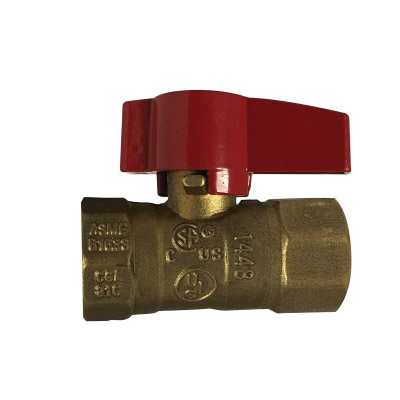

MIDLAND INDUSTRIES 943312 2-Piece Gas Ball Valve, 1/2 in, FIP, Brass, 125 psi

MIDLAND INDUSTRIES 943312 2-Piece Gas Ball Valve, 1/2 in, FIP, Brass, 125 psi

MIDLAND INDUSTRIES 943312 2-Piece Gas Ball Valve, 1/2 in, FIP, Brass, 125 psi 943312

MIDLAND INDUSTRIES 2-Piece Gas Ball Valve, 1/2 in Nominal, FIP Connection, Regular Port, 125 psi Pressure, 2.204 in Inlet to Outlet Length, 1.437 in Top to Inlet Center, Handle Operator, ASTM B124-C37700 Material Standard, Brass Body, Brass Stem, PTFE Seal, Brass/Steel Trim, PTFE Packing Material, Aluminum Handle, Brass Ball, NBR Softgoods, 32 to 149 deg F, 2.204 in L Dimensions, Import, Additional Information: 0.5 and 5 psi Pressure Rating, 1/2-14 Thread Size

Additional Information      :      0.5 and 5 psi Pressure Rating, 1/2-14 Thread Size
Ball Material      :      Brass
Body Material      :      Brass
Connection Type      :      FIP
Dimensions      :      2.204 in L
Domestic/Import      :      Import
Handle Material      :      Aluminum
Inlet to Outlet Length      :      2.204 in
Material Standard      :      ASTM B124-C37700
Nominal Size      :      1/2 in
Operator Type      :      Handle
Packing Material      :      PTFE
Port Type      :      Regular
Pressure Rating      :      125 psi
Seal Material      :      PTFE
Softgoods Material      :      NBR
Stem Material      :      Brass
Temperature Rating      :      32 to 149 deg F
Top to Inlet Center      :      1.437 in
Trim Material      :      Brass/Steel
  • pdfCatalog https://cx1content.unilogcorp.com/cx1/view/api/asset/v1/dam/assets/ITEM/DOC/file/532/MIDLANDINDUSTRIES_943212_Catalog.pdf
