MIDLAND INDUSTRIES 943616 943616

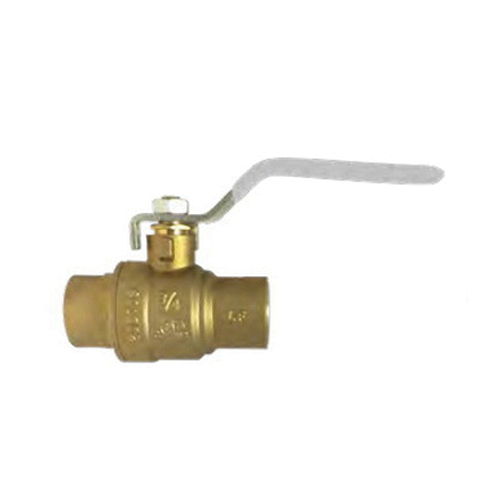

MIDLAND INDUSTRIES 943616 Ball Valve, 1-1/2 in Nominal, Sweat x Sweat, 600 psi WOG Pressure, -22 to 302 deg F

MIDLAND INDUSTRIES 943616 Ball Valve, 1-1/2 in Nominal, Sweat x Sweat, 600 psi WOG Pressure, -22 to 302 deg F

MIDLAND INDUSTRIES 943616 Ball Valve, 1-1/2 in Nominal, Sweat x Sweat, 600 psi WOG Pressure, -22 to 302 deg F 943616

MIDLAND INDUSTRIES Ball Valve, 1-1/2 in Nominal, Connection Type: Sweat x Sweat, Full Port, 600 psi WOG, 4.425 in L Inlet to Outlet, 3.169 in Top to Inlet Center, 1/4 Turn Handle Operator, Brass Body, PTFE Seat, Brass Stem, PTFE Seal, Steel Stem Nut Trim, PTFE Packing, Carbon Steel Handle, Brass Ball, -22 to 302 deg F, 4.425 in L, Import, Additional Information: 1-1/2-11-1/2 Thread Size

Additional Information      :      1-1/2-11-1/2 Thread Size
Ball Material      :      Brass
Body Material      :      Brass
Connection Type      :      Sweat x Sweat
Dimensions      :      4.425 in L
Domestic/Import      :      Import
Handle Material      :      Carbon Steel
Inlet to Outlet Length      :      4.425 in
Nominal Size      :      1-1/2 in
Operator Type      :      1/4 Turn Handle
Packing Material      :      PTFE
Port Type      :      Full
Pressure Rating      :      600 psi WOG
Seal Material      :      PTFE
Seat Material      :      PTFE
Stem Material      :      Brass
Temperature Rating      :      -22 to 302 deg F
Top to Inlet Center      :      3.169 in
Trim Material      :      Steel Stem Nut
  • pdfCatalog https://cx1content.unilogcorp.com/cx1/view/api/asset/v1/dam/assets/ITEM/DOC/file/532/MIDLANDINDUSTRIES_940212_Catalog.pdf
