MIDLAND INDUSTRIES 943750LF 943750LF

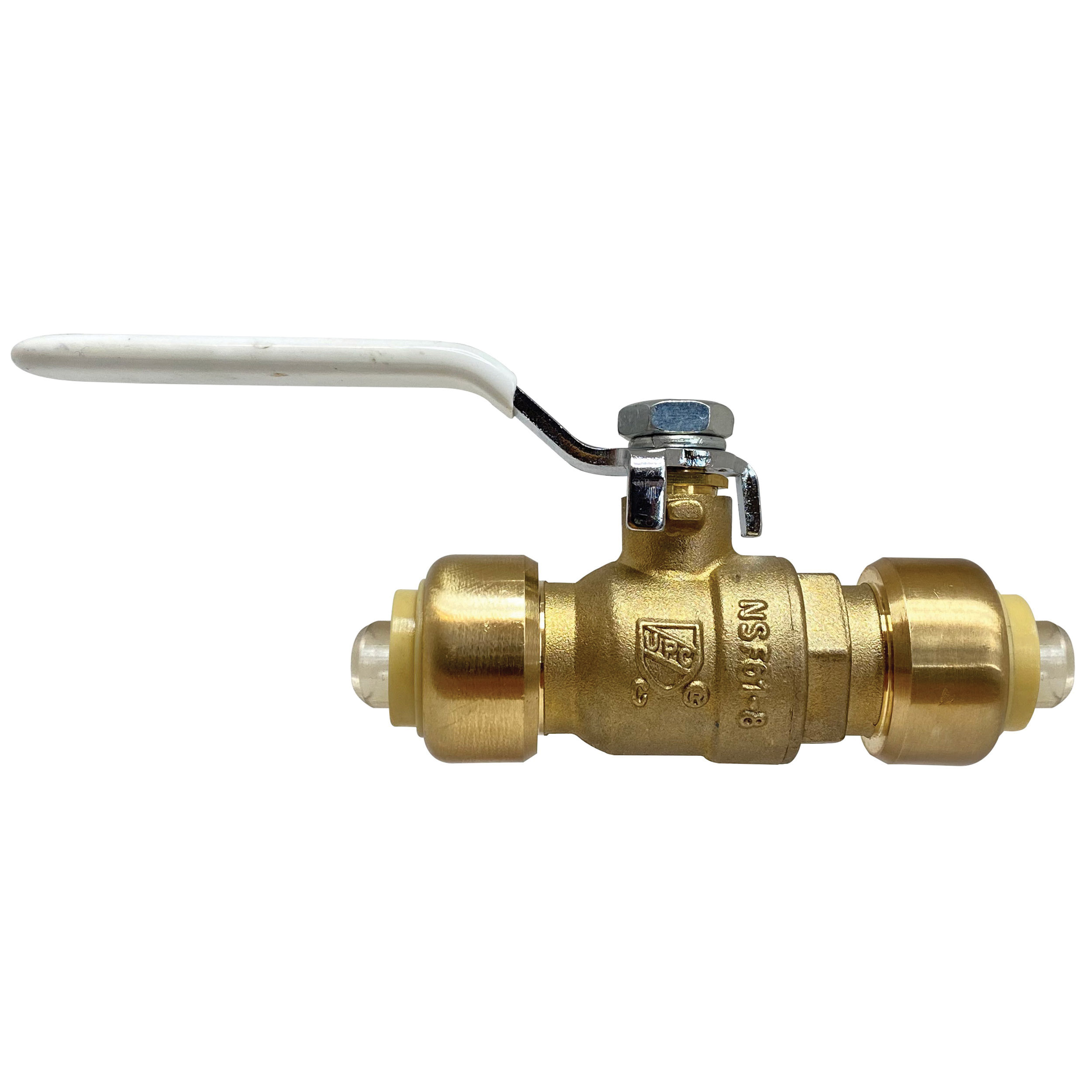

MIDLAND INDUSTRIES 943750LF Ball Valve, 1/2 in, Push-Fit, Brass, 200 psi CWP

MIDLAND INDUSTRIES 943750LF Ball Valve, 1/2 in, Push-Fit, Brass, 200 psi CWP

MIDLAND INDUSTRIES 943750LF Ball Valve, 1/2 in, Push-Fit, Brass, 200 psi CWP 943750LF

MIDLAND INDUSTRIES Ball Valve, 1/2 in Nominal, Push-Fit Connection, Full Port, 200 psi CWP Pressure, 3.15 in Inlet to Outlet Length, 1.73 in Top to Inlet Center, 14.56 Cv Flow Coefficient (Cv), Brass Body, PTFE Seat, Brass Stem, PTFE Packing Material, Stainless Steel Ball, Lead-Free Lead-Free/Contains Lead, -20 to 300 deg F, 3.15 in L Dimensions, Import

Ball Material      :      Stainless Steel
Body Material      :      Brass
Connection Type      :      Push-Fit
Dimensions      :      3.15 in L
Domestic/Import      :      Import
Flow Coefficient (Cv)      :      14.56 Cv
Inlet to Outlet Length      :      3.15 in
Lead-Free/Contains Lead      :      Lead-Free
Nominal Size      :      1/2 in
Packing Material      :      PTFE
Port Type      :      Full
Pressure Rating      :      200 psi CWP
Seat Material      :      PTFE
Stem Material      :      Brass
Temperature Rating      :      -20 to 300 deg F
Top to Inlet Center      :      1.73 in
  • pdfCatalog https://cx1content.unilogcorp.com/cx1/view/api/asset/v1/dam/assets/ITEM/DOC/file/532/MIDLANDINDUSTRIES_943750_Catalog.pdf
