MIDLAND INDUSTRIES 947125 947125

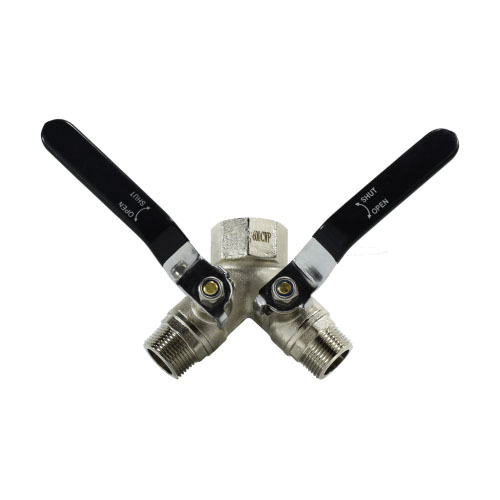

MIDLAND INDUSTRIES 947125 Wye Non-Vented Ball Valve, 1 x 3/4 in, FIP x MIP, Brass, 600 psi

MIDLAND INDUSTRIES 947125 Wye Non-Vented Ball Valve, 1 x 3/4 in, FIP x MIP, Brass, 600 psi

MIDLAND INDUSTRIES 947125 Wye Non-Vented Ball Valve, 1 x 3/4 in, FIP x MIP, Brass, 600 psi 947125

MIDLAND INDUSTRIES Wye Non-Vented Ball Valve, 1 x 3/4 in Nominal, FIP x MIP Connection, Full Port, 600 psi Pressure, 2.05 in Top to Inlet Center, 3 Ports/Ways, Lever Handle Operator, Brass Body, PTFE Seat, Brass Stem, PTFE Seal, Stainless Steel Handle, Brass Ball, Nickel-Plated, -40 to 365 deg F, Import, Additional Information: 150 psi WSP at 365 deg F, 1-11-1/2 x 3/4-14 Thread Size, 29 inHg Vacuum-Rated

Additional Information      :      150 psi WSP at 365 deg F, 1-11-1/2 x 3/4-14 Thread Size, 29 inHg Vacuum-Rated
Ball Material      :      Brass
Body Material      :      Brass
Connection Type      :      FIP x MIP
Domestic/Import      :      Import
Finish      :      Nickel-Plated
Handle Material      :      Stainless Steel
Nominal Size      :      1 x 3/4 in
Number of Ports/Ways      :      3
Operator Type      :      Lever Handle
Port Type      :      Full
Pressure Rating      :      600 psi
Seal Material      :      PTFE
Seat Material      :      PTFE
Stem Material      :      Brass
Temperature Rating      :      -40 to 365 deg F
Top to Inlet Center      :      2.05 in
