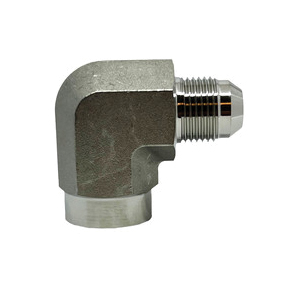

MIDLAND INDUSTRIES SS2502-08-08 90 Deg Elbow, 1/2 in Male 37 deg JIC Flared x 1/2 in FNPT, Stainless Steel
MIDLAND INDUSTRIES SS2502-08-08 90 deg Elbow, 1/2 in Male 37 deg JIC Flared x 1/2 in FNPT, Stainless Steel
MIDLAND INDUSTRIES SS2502-08-08 90 deg Elbow, 1/2 in Male 37 deg JIC Flared x 1/2 in FNPT, Stainless Steel SS2502-08-08- Brand Name: MIDLAND INDUSTRIES
- Part Number: SS2502-08-08
- Check Stock
-
$49.00
Add To Favorites ListMIDLAND INDUSTRIES 90 deg Elbow, Connection Size 1: 1/2 in, Connection Type 1: Male 37 deg JIC Flared, Connection Size 2: 1/2 in, Connection Type 2: FNPT, 316 Stainless Steel, 3/4-16 Thread, Dimension Standards: ANSI B1.20.1, Maximum Operating Pressure: 4000 psi, 1000 deg F Operating, Additional Information: 08 Hose Dash Size
| Additional Information | : | 08 Hose Dash Size |
| Connection Size 1 | : | 1/2 in |
| Connection Size 2 | : | 1/2 in |
| Connection Type 1 | : | Male 37 deg JIC Flared |
| Connection Type 2 | : | FNPT |
| Connection Type | : | JIC|FNPT |
| Dimension Standards | : | ANSI B1.20.1 |
| Fitting Type | : | 90 deg Elbow |
| Material Construction | : | 316 Stainless Steel |
| Material | : | Stainless Steel |
| Maximum Operating Pressure | : | 4000 psi |
| Operating Temperature | : | 1000 deg F |
| Thread Size | : | 3/4-16 |
