REGO® CBC000300A CBC300A

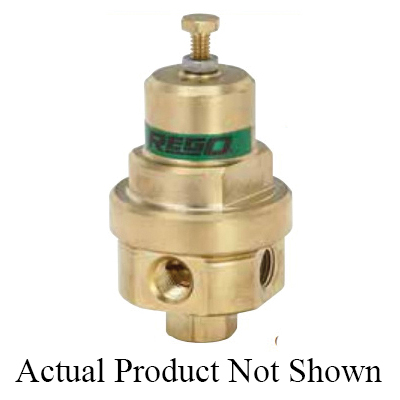

RegO CBC300A Combination Pressure Builder/Economizer

REGO® CBC Series CBC000300A Combination Pressure Builder/Economizer, 1/4 in Nominal, FNPT Connection, Brass Body

REGO® CBC Series CBC000300A Combination Pressure Builder/Economizer, 1/4 in Nominal, FNPT Connection, Brass Body CBC000300A

REGO® Combination Pressure Builder/Economizer, Series: CBC Series, 1/4 in Nominal, FNPT Connection, 550 psig, 150 to 350 psig, Oxygen Media, 2-1/16 in Inlet to Outlet Length, 3 in Top to Inlet Center, Brass Body, -320 deg F

Body Material      :      Brass
Connection Type      :      FNPT
Inlet to Outlet Length      :      2-1/16 in
Media      :      Oxygen
Nominal Size      :      1/4 in
Pressure Rating      :      550 psig, 150 to 350 psig
Series      :      CBC Series
Temperature Rating      :      -320 deg F
Top to Inlet Center      :      3 in
  • All parts are copper alloy (brass), PTFE and stainless steel materials selected specifically for compatibility with cryogenic temperatures down to -320 deg F
  • Body and bonnet machined from solid brass bar stock
  • PTFE seat helps assure a positive shut-off at cryogenic temperatures down to -320 deg F
  • High and low pressure regulators/economizers are the same compact size designed to fit in close quarters
  • Interchangeable with existing cryogenic regulator units
  • Inlet filter helps prevent foreign material from entering the regulator
  • Locknut is provided to maintain adjusting screw setting
  • Cleaned for liquid oxygen service per CGA G-4.1
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/REGO_CBC000300A_Specification_Sheet.pdf
