REGO® CBC502-350 CBC502-350

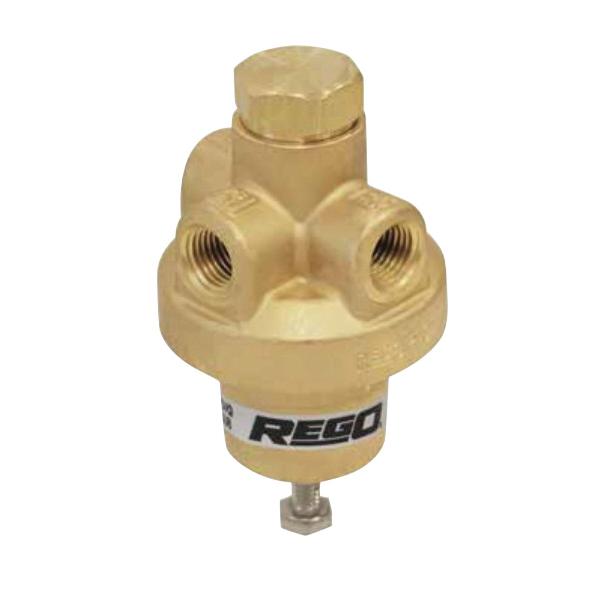

RegO CBC502-350 Combination Pressure Builder/Economizer Regulator

REGO® CBC502 Series CBC502-350 Combination Pressure Builder/Economizer Regulator, 1/4 in Nominal, FNPT Connection

REGO® CBC502 Series CBC502-350 Combination Pressure Builder/Economizer Regulator, 1/4 in Nominal, FNPT Connection CBC502-350

REGO® Combination Pressure Builder/Economizer Regulator, Series: CBC502 Series, 1/4 in Nominal, FNPT Connection, 550 psig, 150 to 350 psig, Argon, Carbon Dioxide, LNG, Nitrogen, Oxygen Media, 1.97 in Inlet to Outlet Length, 1.19 in Top to Inlet Center, Brass Body, -320 deg F

Body Material      :      Brass
Connection Type      :      FNPT
Inlet to Outlet Length      :      1.97 in
Media      :      Argon, Carbon Dioxide, LNG, Nitrogen, Oxygen
Nominal Size      :      1/4 in
Pressure Rating      :      550 psig, 150 to 350 psig
Series      :      CBC502 Series
Temperature Rating      :      -320 deg F
Top to Inlet Center      :      1.19 in
  • PTFE seat helps assure a positive shut-off at cryogenic temperatures down to -320 deg F
  • High and low pressure builder/economizers are the same compact size designed to fit in close quarters
  • Interchangeable with existing cryogenic regulator units
  • Inlet screen helps prevent foreign material from entering the regulator
  • Locknut is provided to maintain adjusting screw setting
  • Cleaned for oxygen service per CGA G-4.1
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/REGO_15578_Catalog.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/REGO_CBC502_350_Specification_Sheet.pdf
