REGO® CMM375B CMM375B

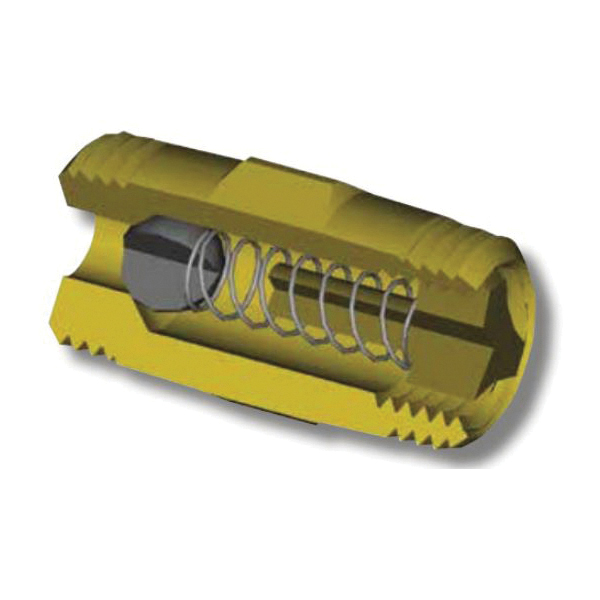

RegO CMM375B Check Valve With Metal Seat

REGO® CMM Series CMM375B Check Valve With Metal Seat, Inline Valve, 3/8 in Nominal, MNPT, 1000 psig, Brass/Steel Body

REGO® CMM Series CMM375B Check Valve With Metal Seat, Inline Valve, 3/8 in Nominal, MNPT, 1000 psig, Brass/Steel Body CMM375B

REGO® Check Valve With Metal Seat, Series: CMM Series, Inline Valve, 3/8 in Nominal, MNPT Connection, 1000 psig, 0.8 Cv Flow Coefficient (Cv), -20 to 400 deg F Operating, Air, Liquid Media, Brass/Steel Body, Zinc-Plated, 1-3/8 in Inlet to Outlet Length

Body Material      :      Brass/Steel
Connection Type      :      MNPT
Finish      :      Zinc-Plated
Flow Coefficient (Cv)      :      0.8 Cv
Inlet to Outlet Length      :      1-3/8 in
Media Type      :      Air, Liquid
Nominal Size      :      3/8 in
Operating Temperature      :      -20 to 400 deg F
Pressure Rating      :      1000 psig
Series      :      CMM Series
Valve Type      :      Inline
  • Metal to metal seal for leak-free liquid service
  • O-ring design for leak-free air service
  • Steel valves are zinc-plated and sealed with clear chromate for double corrosion protection
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/REGO_CMM375B_Specification_Sheet.pdf
