REGO® S-232HCB-8WA S-232HCB-8WA

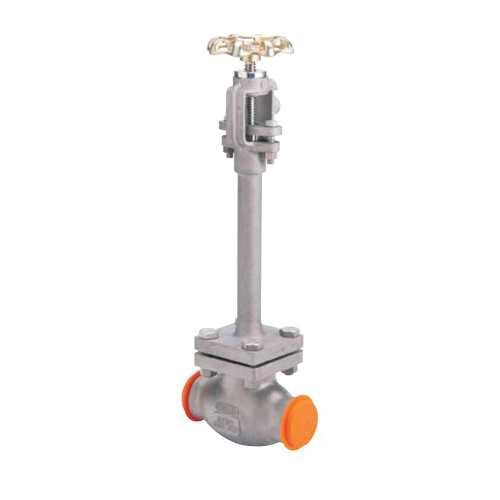

RegO S-232HCB-8WA Globe Valve

REGO® 232 Series S-232HCB-8WA Globe Valve, 1 in Nominal, Butt Weld, 300 psig, -320 to 150 deg F Operating Temperature

REGO® 232 Series S-232HCB-8WA Globe Valve, 1 in Nominal, Butt Weld, 300 psig, -320 to 150 deg F Operating Temperature S-232HCB-8WA

REGO® Globe Valve, Series: 232 Series, 1 in Nominal, Butt Weld Connection, 300 psig, 10.5 Cv Flow Coefficient (Cv), -320 to 150 deg F Operating, High Purity Bonnet, PCTFE Softgoods, Stainless Steel Body, Nickel-Plated, 5 in Inlet to Outlet Length, 17 in Stem Height, LNG Gas Media

Body Material      :      Stainless Steel
Bonnet Type      :      High Purity
Connection Type      :      Butt Weld
Finish      :      Nickel-Plated
Flow Coefficient (Cv)      :      10.5 Cv
Inlet to Outlet Length      :      5 in
Media Type      :      LNG Gas
Nominal Size      :      1 in
Operating Temperature      :      -320 to 150 deg F
Pressure Rating      :      300 psig
Series      :      232 Series
Softgoods Material      :      PCTFE
Stem Height      :      17 in
  • Top entry - rugged stainless steel soft seated cryogenic globe valve
  • This valve can be permanently installed in the line and serviced from the top
  • Soft seated - PCTFE seat provides a bubble tight seal and is replaceable
  • Construction - one-piece investment cast bonnet eliminates welded joint in top works
  • Liquefied and vaporized atmospheric gases, LNG service
  • A rugged construction and easy access are design features which provide minimum installation and maintenance cost while maintaining superior performance and operator safety
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/REGO_B_226BLA_12S6_Catalog.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/REGO_S_232HCB_8WA_Specification_Sheet.pdf
