REGO® TMF375B TMF375B

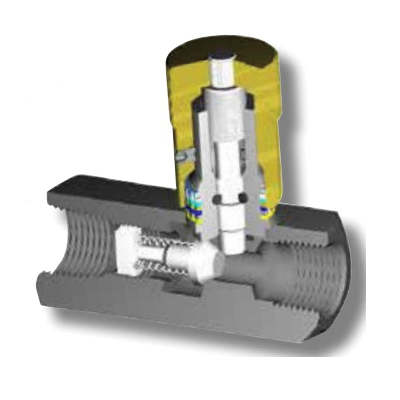

RegO TMF375B Needle Valve With Metal Seat

REGO® TMF Series TMF375B Needle Valve With Metal Seat, 3/8 in Nominal, FNPT, 2000 psig, Brass Body

REGO® TMF Series TMF375B Needle Valve With Metal Seat, 3/8 in Nominal, FNPT, 2000 psig, Brass Body TMF375B

REGO® Needle Valve With Metal Seat, Series: TMF Series, 3/8 in Nominal, FNPT Connection, 2000 psig, 0.72 Cv Flow Coefficient (Cv), -20 to 400 deg F Operating, Stainless Steel Trim, FKM/PTFE Softgoods, Brass Body, 2-3/4 in Inlet to Outlet Length, Air Media

Body Material      :      Brass
Connection Type      :      FNPT
Flow Coefficient (Cv)      :      0.72 Cv
Inlet to Outlet Length      :      2-3/4 in
Media Type      :      Air
Nominal Size      :      3/8 in
Operating Temperature      :      -20 to 400 deg F
Pressure Rating      :      2000 psig
Series      :      TMF Series
Softgoods Material      :      FKM/PTFE
Trim Material      :      Stainless Steel
  • Easy-to-read color bands and micrometer knob for exact flow settings
  • Re-set repeatability within 1%
  • Precision machined double-step stem with fine threading provides accurate control, even at extremely low flows
  • Rugged, all metal construction, no plastic parts
  • Bleed holes in piston provide a cushion to soften closing impact and extend valve life
  • Brazed construction to withstand high pressure
  • Soft seat piston check, available on 1/4 in and 1/8 in brass sizes, assures leak-free air service
  • All others have metal to metal seat
