Scheerer Bearing 14825-TAF 14825-TAF

Scheerer Bearing 14825-TAF Roller Thrust Bearing (0.9055 IN ID, 3.5433 IN OD, 9.685 IN W)

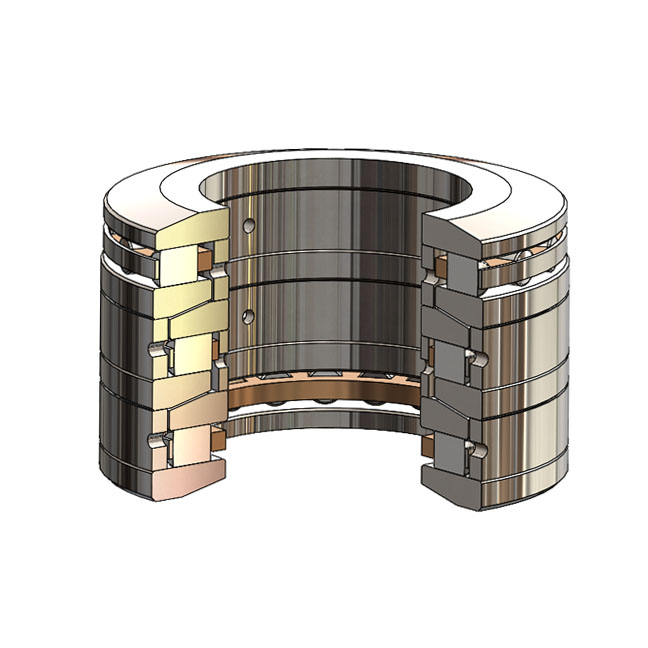

Scheerer Bearing 14825-TAF Six-Stage Tandem Ball Thrust Bearing, Banded Type Cage

Scheerer Bearing 14825-TAF Six-Stage Tandem Ball Thrust Bearing, Banded Type Cage 14825-TAF

Scheerer Bearing manufactures both Ball Thrust Bearings and Roller Thrust Bearings. A thrust force or axial force is parallel to the axis of rotation. We inventory the light duty, single direction Ball Thrust varieties for our distributors, and we are best known for the angular contact Ball Thrust bearings that handle both radial and thrust loads. Our grooved race systems are designed for higher load capacities found in electric motors, pumps, and other high-speed applications. Flat race systems are also available for bearings that require minimal space at slower speeds.

Additional Information      :      Six-Stage Tandem
Bearing Design      :      Ball Thrust
Cage Material      :      Bronze/Brass
Cage Type      :      Banded
Dynamic Load Capacity      :      Standard
Filling Slot      :      No
Inside Diameter      :      0.9055 In
Internal Clearance      :      Standard
Number of Rows      :      6
Outside Diameter      :      3.5433 In
Precision Class      :      ABEC-1 (Standard)
Precision Ground      :      Yes
Race Material      :      Through Hardened Steel
Seal Type      :      None
Static Load Capacity      :      Standard
Width      :      9.685 In
