Scheerer Bearing 53412-U 53412-U

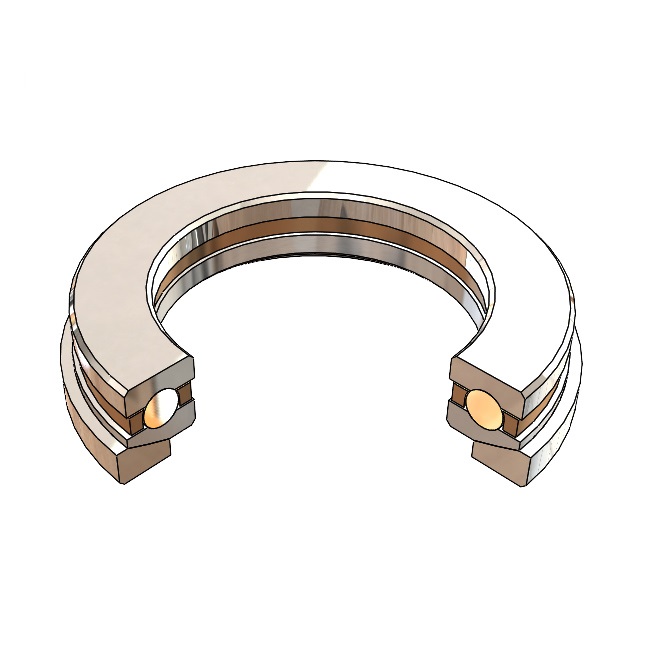

Scheerer Bearing 53412-U Ball Thrust Bearing (2.3622 IN ID, 5.315 IN OD, 2.2835 IN W)

Scheerer Bearing 53412-U Ball Thrust Bearing, With Seating Ring

Scheerer Bearing 53412-U Ball Thrust Bearing, With Seating Ring 53412-U

Scheerer Bearing manufactures both Ball Thrust Bearings and Roller Thrust Bearings. A thrust force or axial force is parallel to the axis of rotation. We inventory the light duty, single direction Ball Thrust varieties for our distributors, and we are best known for the angular contact Ball Thrust bearings that handle both radial and thrust loads. Our grooved race systems are designed for higher load capacities found in electric motors, pumps, and other high-speed applications. Flat race systems are also available for bearings that require minimal space at slower speeds.

Additional Information      :      Seating Ring
Bearing Design      :      Ball Thrust - Banded
Cage Material      :      Bronze/Brass
Dynamic Load Capacity      :      Standard
Filling Slot      :      No
Inside Diameter      :      2.3622 In
Internal Clearance      :      N/A
Number of Rows      :      1
Outside Diameter      :      5.315 In
Precision Class      :      ABEC-1 (Standard)
Precision Ground      :      Yes
Race Material      :      Through Hardened Steel
Seal Type      :      None
Static Load Capacity      :      Standard
Width      :      2.2835 In
