Scheerer Bearing YRT-200-C YRT-200-C

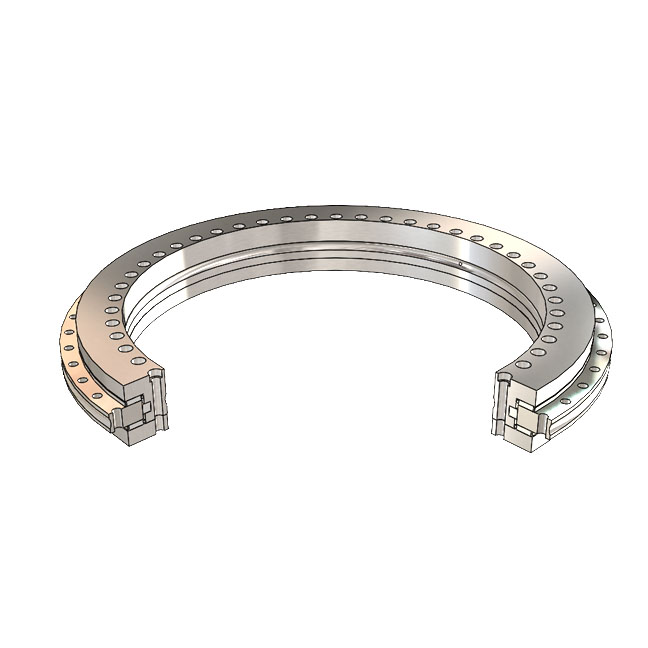

Scheerer Bearing YRT-200-C Cylindrical Roller Thrust Bearing (7.874 IN ID, 11.811 IN OD, 1.7716 IN W)

Scheerer Bearing YRT-200-C Axial and Radial Bearing for Rotary Tables, Double Direction, Window Type Cage

Scheerer Bearing YRT-200-C Axial and Radial Bearing for Rotary Tables, Double Direction, Window Type Cage YRT-200-C

Industrial turntable bearings are designed for 360 degree rotation under radial, axial and moment loads. Often face-mounted using bolt hole patterns, these unique bearings can support rotation from external components, or can be used as the primary drive feature through an outer or Inner Ring gear. These bearings come in a wide variety of sizes and configurations, from a 5” ID all the way up through a 150”+ OD, and can provide the perfect bearing solution in many different applications.

Additional Information      :      2 Pc. Inner Washer
Bearing Design      :      Roller Thrust - Cylindrical - Double Direction
Cage Material      :      Steel Machined
Cage Type      :      Window Style
Dynamic Load Capacity      :      Standard
Filling Slot      :      Yes
Inside Diameter      :      7.874 In
Internal Clearance      :      Standard
Number of Rows      :      3
Outside Diameter      :      11.811 In
Precision Class      :      P5
Precision Ground      :      Yes
Race Material      :      Through Hardened Steel
Relubricatable      :      Yes
Relubrication Feature      :      Hole
Seal Type      :      None
Static Load Capacity      :      Standard
Width      :      1.7716 In
