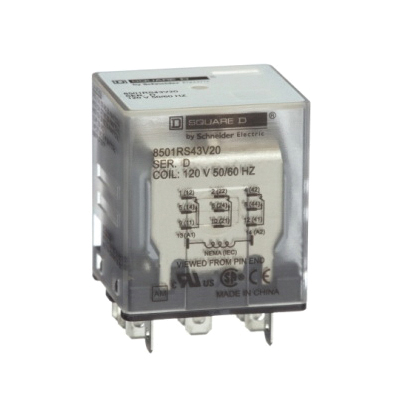

Square D 8501RS43V20 Miniature Relay, 15 Amp, 3NO-3NC 3PDT, 120 VAC Coil

8501RS miniature plug-in relays are designed for control circuit logic applications. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 8501NR43 or 8501NR43B relay socket. Relay is available with 3PDT contact arrangements. It has three normally open and three normally closed contacts. The contacts have a 15 a resistive rating at 277 VAC and at 28VDC, a 10 a resistive rating at 277 VAC, a 1/2 hp rating at 120 VAC, a 1 hp rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 120 VAC non-replaceable coil. Relay does not have a green LED indicator. 8501RS relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.
Square D Miniature Relay, Series: 8501R Series, 15 A, 120 VAC Coil, 300 VAC Switching Voltage, 3NO-3NC 3PDT, Plug-In Base, Socket Mount, Non-Replaceable Coil, 20 ms Operating, LED, 20 ms Reset, Silver Alloy/Gold Flashed Contact, -40 to 131 deg F, 1.07 in Height, 1.2 in Width, 1.65 in D

• Catalog https://assets.unilogcorp.com/267/ITEM/DOC/Schneider_Electric_8501KPR12P14V20_Catalog.pdf
• RoHS https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_8501RS43V20_RoHS.pdf
• Specification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_8501RS43V20_Specification_Sheet.pdf
