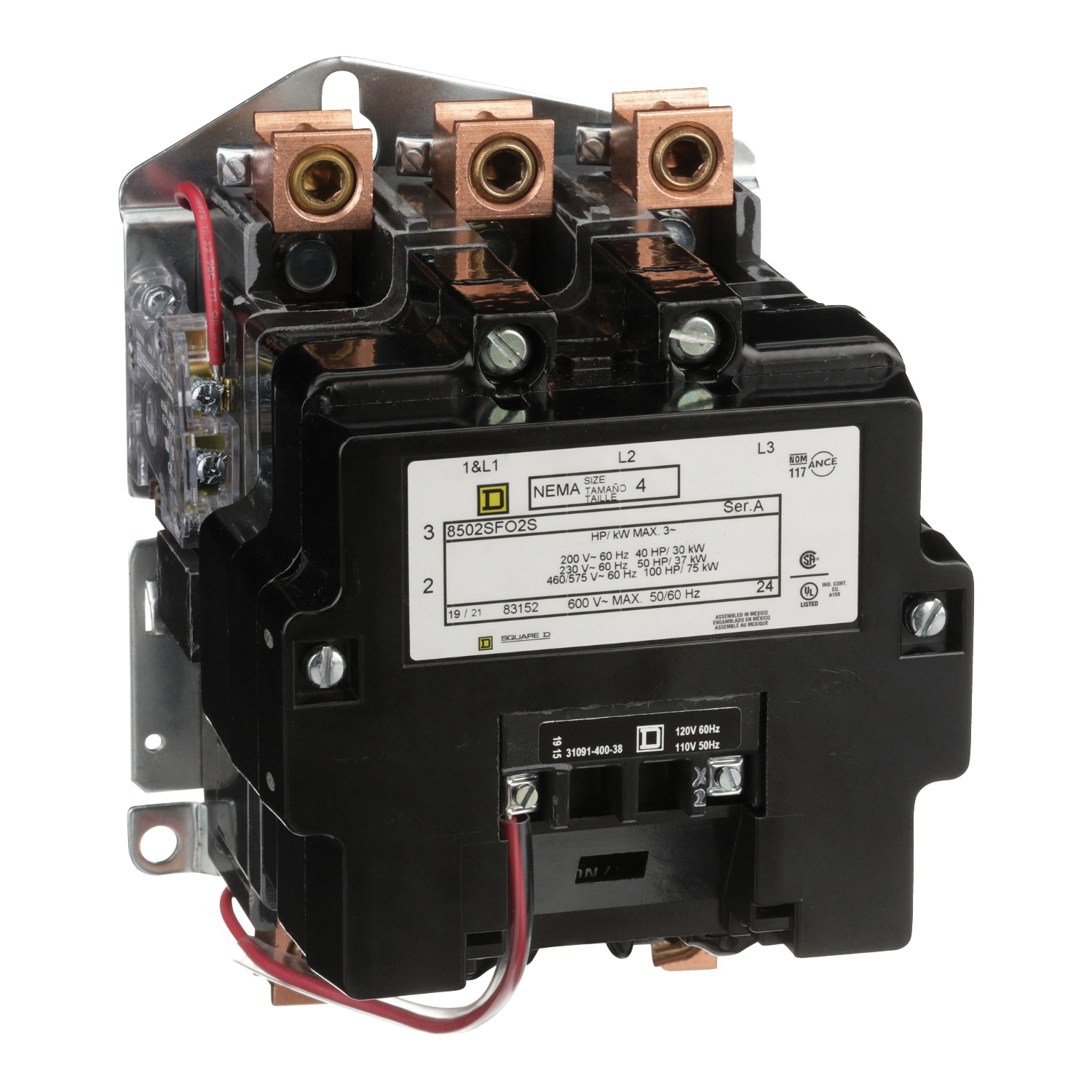

Square D 8502SFO2V02 NEMA Contactor, 120 VAC Coil, Three Pole, NEMA 4

Type S non-reversing magnetic contactors are used to switch heating loads, capacitors, transformers and electric motors where overload protection is provided separately. Type S contactors have ratings up to 810 A. This 3-pole NEMA Size 4 non-reversing contactor has a 135 A rating. 3-phase NEMA Size 4 contactors have 40 hp at 200, 50 hp at 230 VAC and 100 hp at 460 and 575 VAC ratings. This NEMA contactor has a 100 kA maximum SCCR rating per UL 508A when protected by an appropriate circuit breaker or fuse. These contactors are available with replaceable coils in a wide variety of voltages. This contactor has a 110/120 VAC 50/60 Hz coil that is wired for separate control. This NEMA contactor is an open device without an enclosure. This contactor is 8.19 in tall, 6 in wide and 6-1/2 in deep. A wide variety of accessories are available for Type S contactors. Type S NEMA contactors are UL listed and CSA certified.
Square D NEMA Contactor, 600 VAC, 135 A, 50/60 Hz, 3 ph Phase, 120 VAC Coil Voltage, 3 Poles, Screw Clamp Terminal, NEMA Rating: NEMA 4, 8.19 in Height, 6 in Width, 6-1/2 in Depth

• Catalog https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_8536SBO2V02SX11_Catalog.pdf
• Instruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_3109140057_Instruction_Installation_Manual.pdf
• Specification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_8502SFO2V02_Specification_Sheet.pdf
