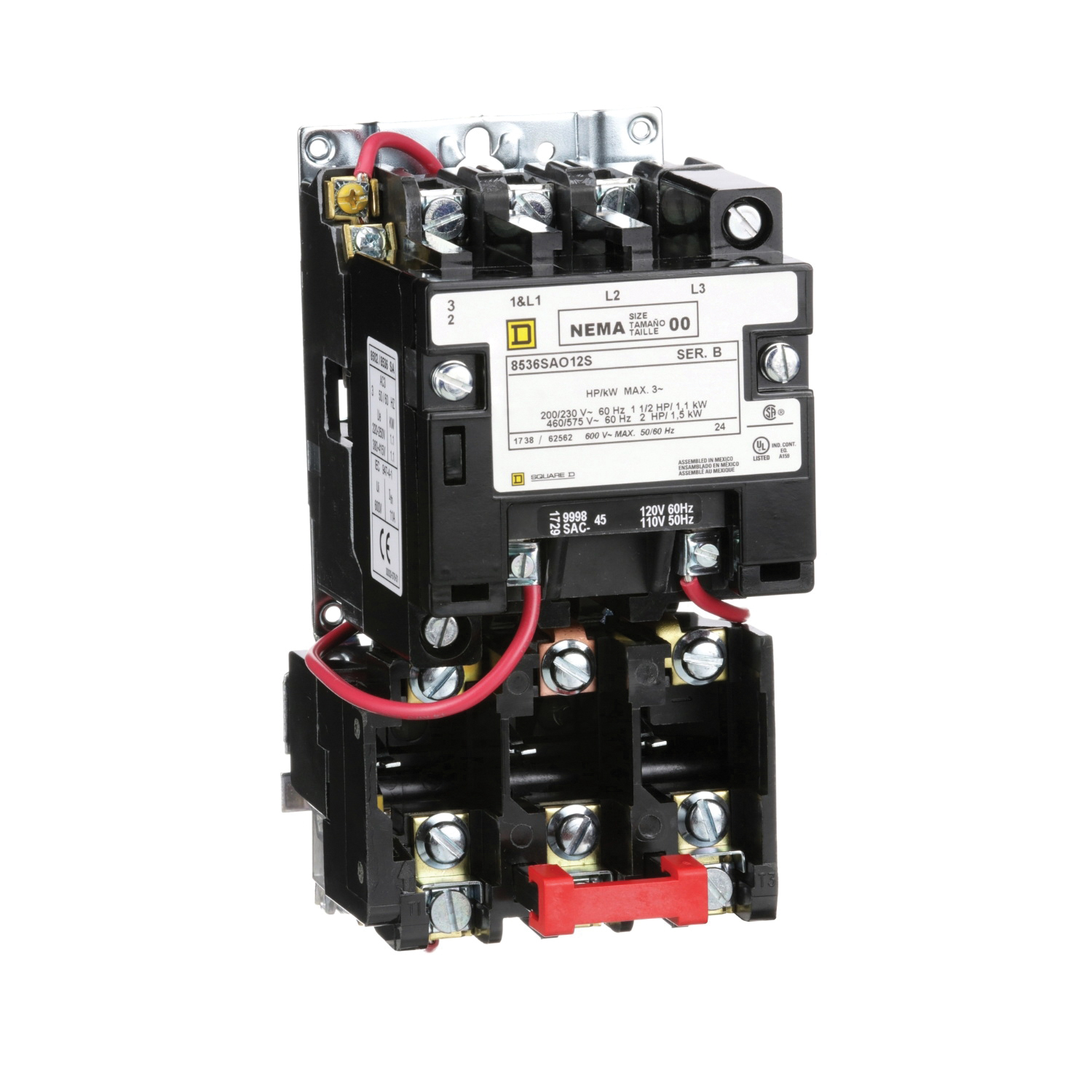

Square D 8536SAO12V02S Non-Reversing Starter, 600 VAC, 9 Amp, 2 HP, Three Pole

Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 A. This 3-pole NEMA Size 00 non-reversing starter has an 9 A rating. This NEMA Size 00 motor starter has 3-phase ratings of 1.5 hp at 220 and 230 VAC and 2 hp at 460 and 575 VAC. This non-reversing NEMA motor starter has a melting alloy type overload relay that uses Type B thermal units to sense over current conditions. This NEMA starter has a 5 kA maximum SCCR (Short Circuit Current Rating) per UL 508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. This NEMA starter is an open device without an enclosure. This starter is 6.77 in tall, 3.50 in wide and 4.22 in deep. A wide variety of accessories are available for Type S starters. Type S non-reversing NEMA motor starters are UL listed and CSA certified.
Square D Non-Reversing Starter, 600 VAC, 9 A, 2 hp HP Rating, 50/60 Hz, 3 ph, 3 Pole, Screw Clamp Connection Type, NEMA 00, 6.81 in H x 3.5 in W x 4.22 in D

• Catalog https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_8536SAO12V02S_Catalog.pdf
• Instruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_8536SAO12V02S_Instruction_Installation_Manual.pdf
• Specification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_8536SAO12V02S_Specification_Sheet.pdf
• Video Link https://www.youtube.com/embed/HH4qt8sWnGI
• Video Link https://youtu.be/px9WH8Biy0o
