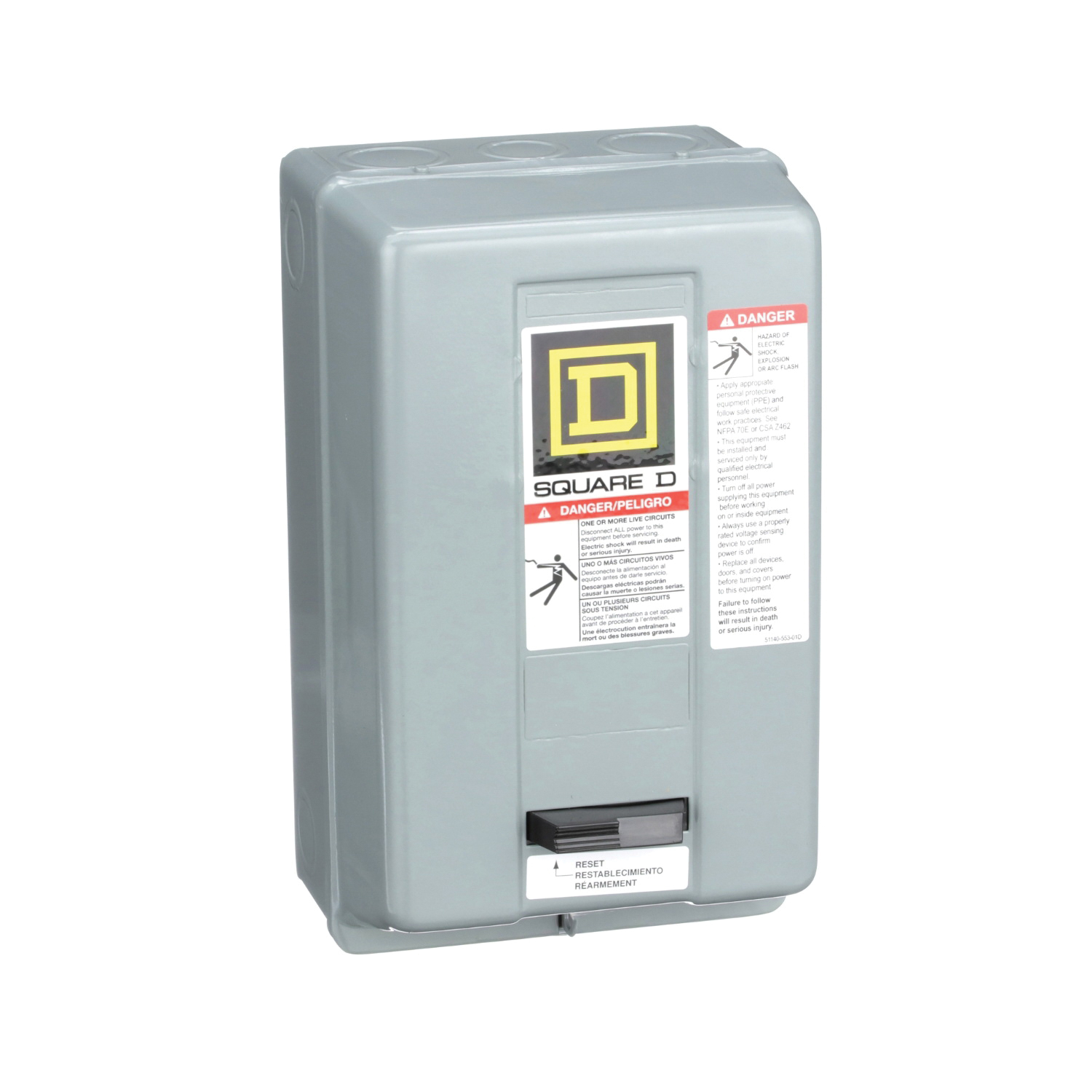

Square D 8536SBG2V02S Non-Reversing Starter, 600 VAC, 18 Amp, 5 HP, Three Pole

Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 A. This 3-pole NEMA Size 0 non-reversing starter has an 18 A rating. NEMA Size 0 motor starters have 3-phase ratings of 3 hp at 200 and 230 VAC and 5 hp at 460 and 575 VAC. This non-reversing NEMA motor starter has a melting alloy type overload relay that uses Type B thermal units to sense over current conditions. This NEMA starter has a 5 kA maximum SCCR (Short Circuit Current Rating) per UL 508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. A painted sheet steel NEMA 1 general purpose enclosure is used to protect this starter. Enclosure is 10 in tall, 6 in wide and 5.56 in deep. A wide variety of accessories are available for Type S starters. Type S non-reversing NEMA motor starters are UL listed and CSA certified.
Square D Non-Reversing Starter, 600 VAC, 18 A, 5 hp HP Rating, 50/60 Hz, 3 ph, 3 Pole, Screw Clamp Connection Type, NEMA 0, 10 in H x 6 in W x 5.56 in D

• Catalog https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_8536SAO12V02S_Catalog.pdf
• Instruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Schneider_Electric_8536SBG1V02CS_Instruction_Installation_Manual.pdf
• RoHS https://media.distributordatasolutions.com/schneider2/2019q4/90aa8613e397c164e2fe186f152ad56dcd8e7347.pdf
• Specification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_8536SBG2V02S_Specification_Sheet.pdf
• Video Link https://youtu.be/px9WH8Biy0o
