Square D 8536SCG3V02S 8536SCG3V02S

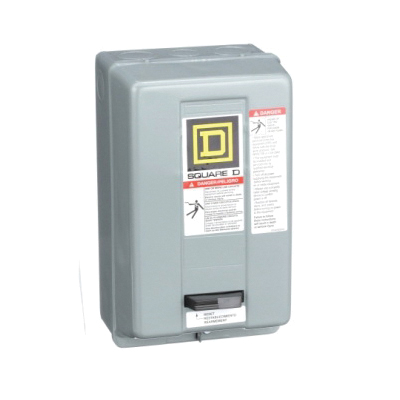

Square D 8536SCG3V02S General Purpose Non-Reversing Type-S Motor Starter, 600 VAC, 27 Amp, 10 HP, Three Pole

Square D 8536SCG3V02S General Purpose Non-Reversing Type-S Motor Starter, 600 VAC, 27 A, 10 hp, 3 -Pole

Square D 8536SCG3V02S General Purpose Non-Reversing Type-S Motor Starter, 600 VAC, 27 A, 10 hp, 3 -Pole 8536SCG3V02S

Square D General Purpose Non-Reversing Type-S Motor Starter, 600 VAC, 27 A, 10 hp HP Rating, 50/60 Hz, 3 ph, 3 Pole, Screw Clamp Connection Type, NEMA 1, Surface Mount, Sheet Steel, Painted, 10 in H x 6 in W x 5.56 in D

Amperage Rating      :      27 A
Connection Type      :      Screw Clamp
Dimensions      :      10 in H x 6 in W x 5.56 in D
Finish      :      Painted
Frequency Rating      :      50/60 Hz
HP Rating      :      10 hp
Material      :      Sheet Steel
Mounting Type      :      Surface
NEMA Rating      :      NEMA 1
Number of Poles      :      3
Phase      :      3 ph
Voltage Rating      :      600 VAC
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_8536SCG3V02S_Catalog.pdf
  • pdfFull Engineering Drawing https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_8536SCG3V02S_Full_Engineering_Drawing.pdf
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_3104140042_Instruction_Installation_Manual.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_8536SCG3V02S_Specification_Sheet.pdf
