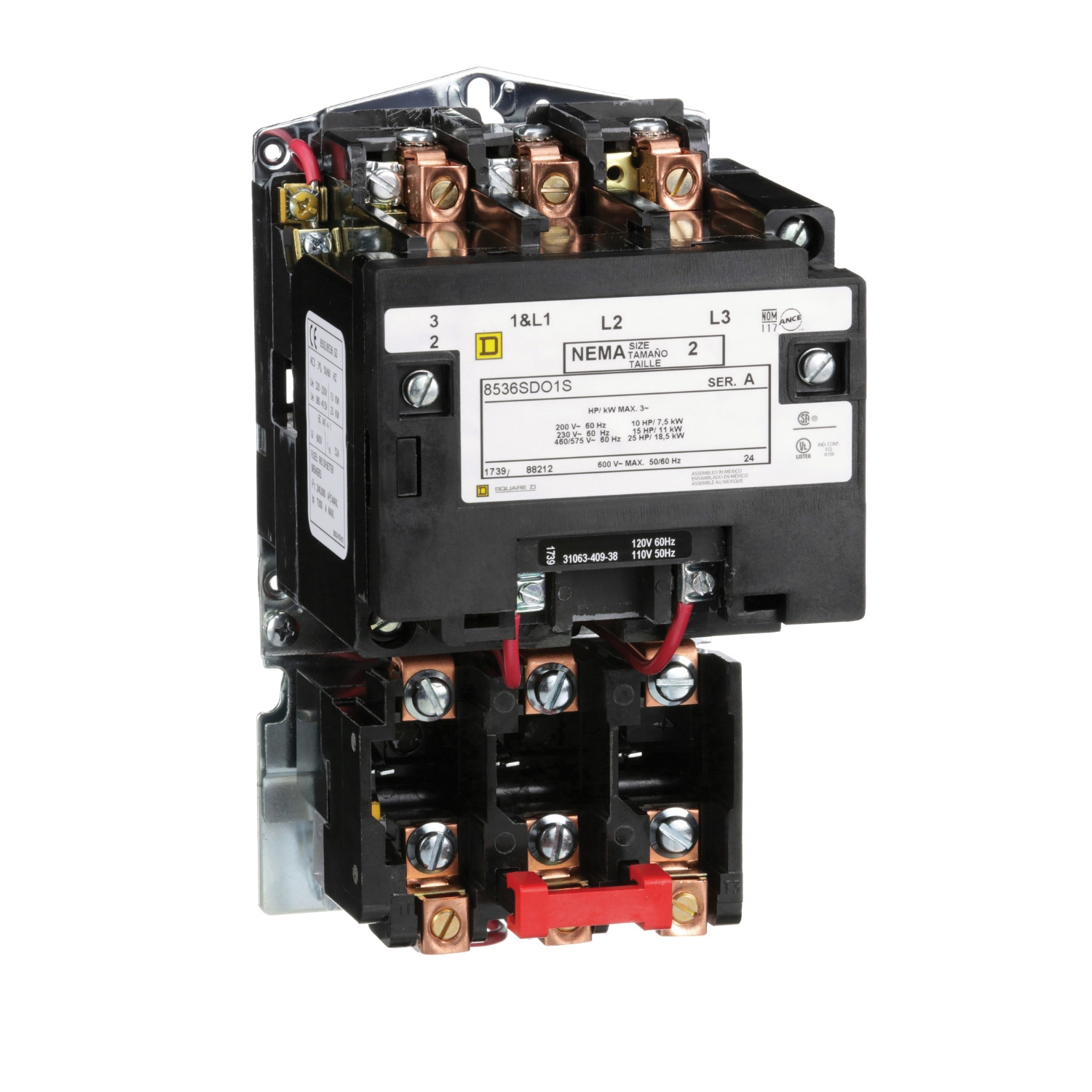

Square D 8536SDO1V02S Non-Reversing Starter, 600 VAC, 45 Amp, 25 HP, Three Pole

Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 A. This 3-pole NEMA Size 2 non-reversing starter has a 45 A rating. This NEMA Size 2 motor starter has 3-phase ratings of 10 hp at 200 VAC, 15 hp at 230 VAC and 25 hp at 460 and 575 VAC. This non-reversing NEMA motor starter has a melting alloy type overload relay that uses Type B thermal units to sense over current conditions. This NEMA starter has a 5 kA maximum SCCR (Short Circuit Current Rating) per UL 508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. This NEMA starter is an open device without an enclosure. This starter is 7.81 in tall, 4.31 in wide and 4.94 in deep. A wide variety of accessories are available for Type S starters. Type S non-reversing NEMA motor starters are UL listed and CSA certified.
Square D Non-Reversing Starter, 600 VAC, 45 A, 25 hp HP Rating, 50/60 Hz, 3 ph, 3 Pole, NEMA 2, 7.81 in H x 4.31 in W x 4.94 in D
