Square D 8536SFO1V02 8536SFO1V02

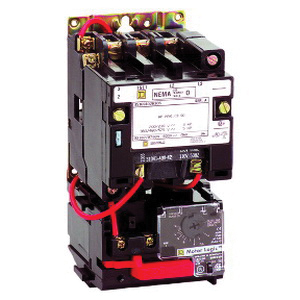

Square D 8536SFO1V02 NEMA Starter, 110/120 VAC, 135 Amp, 100 HP, Three Pole, Open Enclosure

Square D 8536SFO1V02 NEMA Starter, 110/120 VAC, 135 A, 100 hp, 3 -Pole, Open Enclosure

Square D 8536SFO1V02 NEMA Starter, 110/120 VAC, 135 A, 100 hp, 3 -Pole, Open Enclosure 8536SFO1V02

Square D NEMA Starter, 110/120 VAC, 135 A, 100 hp HP Rating, 50/60 Hz, 3 ph, 3 Pole, Box Lug, Screw Clamp Terminal Connection Type, Open, 3000000 cycles Operating Cycles, NEMA 4, 0 to 40 deg C, 327 mm H x 152.4 mm W x 165.1 mm D

Amperage Rating      :      135 A
Connection Type      :      Box Lug, Screw Clamp Terminal
Dimensions      :      327 mm H x 152.4 mm W x 165.1 mm D
Enclosure Type      :      Open
Frequency Rating      :      50/60 Hz
HP Rating      :      100 hp
NEMA Rating      :      NEMA 4
Number of Poles      :      3
Operating Cycles      :      3000000 cycles
Phase      :      3 ph
Temperature Rating      :      0 to 40 deg C
Voltage Rating      :      110/120 VAC
  • With motor logic overload relay
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_8536SFO1V02_Catalog.pdf
