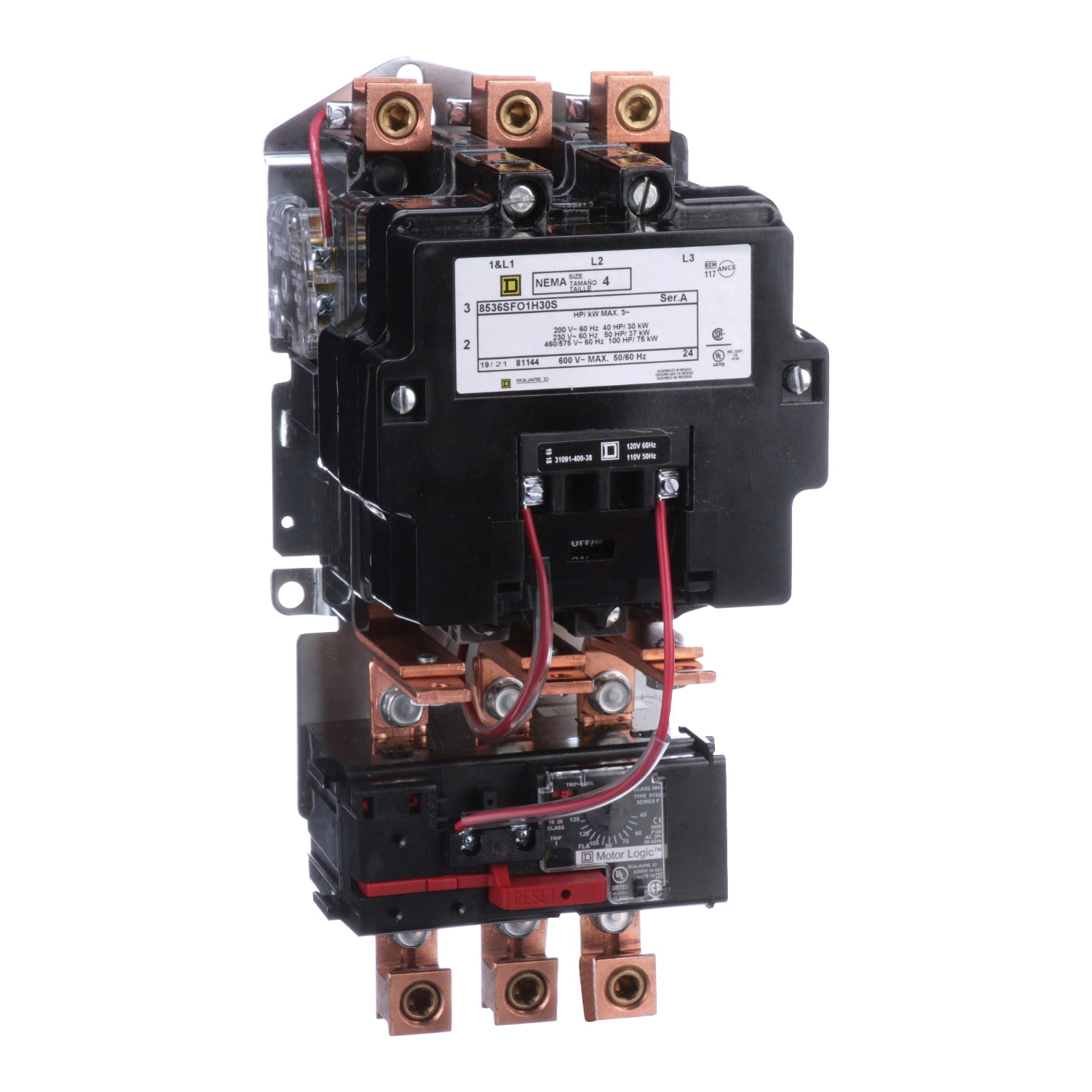

Square D 8536SFO1V02H30S Non-Reversing Starter, 600 VAC, 135 Amp, 100 HP, Three Pole

Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 A. This 3-pole NEMA Size 4 non-reversing starter has a 135 A rating. This NEMA Size 4 motor starter has 3-phase ratings of 40 hp at 200 VAC, 50 hp at 230 VAC and 100 hp at 460 and 575 VAC. This non-reversing NEMA motor starter has a motor logic overload relay with a 45 to 135 A range to sense over current conditions. This NEMA starter has a 100 kA maximum SCCR (Short Circuit Current Rating) per UL 508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. This NEMA starter is an open device without an enclosure. This starter is 12.88 in tall, 6 in wide and 6.5 in deep. A wide variety of accessories are available for Type S starters. Type S non-reversing NEMA motor starters are UL listed and CSA certified.
Square D Non-Reversing Starter, 600 VAC, 135 A, 100 hp HP Rating, 50/60 Hz, 3 ph, 3 Pole, Screw Clamp Connection Type, NEMA 4, 12.88 in H x 6 in W x 6.5 in D
