Square D 9037HG33 9037HG33

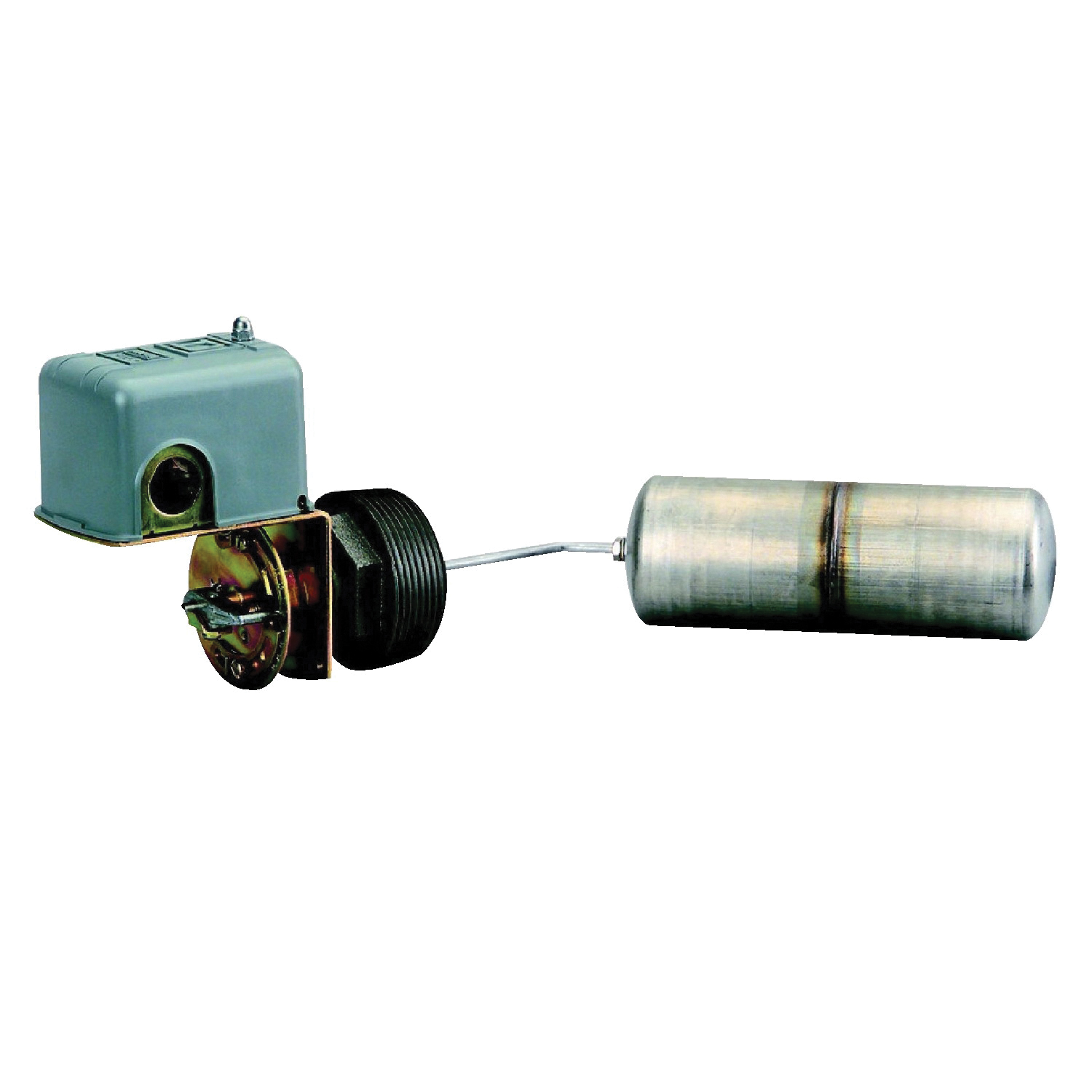

Square D 9037HG33 Float Pressure Switch, 600 V, Screw Clamp Terminal Electrical Connection

Square D Pumptrol 9037HG33 Float Pressure Switch, 600 V, Screw Clamp Terminal Electrical Connection

Square D Pumptrol 9037HG33 Float Pressure Switch, 600 V, Screw Clamp Terminal Electrical Connection 9037HG33

Square D Pumptrol Float Pressure Switch, 600 V, 600 A, Screw Clamp Terminal Electrical Connection Type, 0 to 220 deg F Operating, NEMA 1, Screw-In Bushing Mount, 16.06 in Overall Length

Amperage Rating      :      600 A
Electrical Connection Type      :      Screw Clamp Terminal
Enclosure Type      :      NEMA 1
Mounting Type      :      Screw-In Bushing
Operating Temperature      :      0 to 220 deg F
Overall Length      :      16.06 in
Voltage Rating      :      600 V
  • Power circuit, three knockouts for 1/2 in conduit conforming to UL 508 cable entry, 2 NC snap-action contact-type
  • Contacts close on liquid rise
  • 2 to 5 in adjustable float movement, 45 deg right float rod angle
  • 20 A cartridge fuse, type gG short circuit protection
  • With external pointer local signaling
  • Cast iron, 316 stainless steel, 304 stainless steel, yellow brass, nitrile (Buna-N) or equivalent rubber materials in contact with fluid
  • Vertical operation position only
  • Line-load-load-line four terminals, 60 cpm maximum operating rate
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_9037HG33_Specification_Sheet.pdf
