Square D 9050JCK70V20 9050JCK70V20

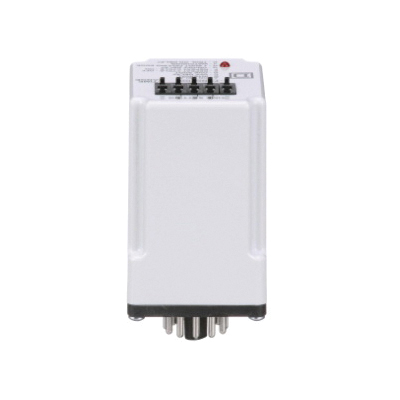

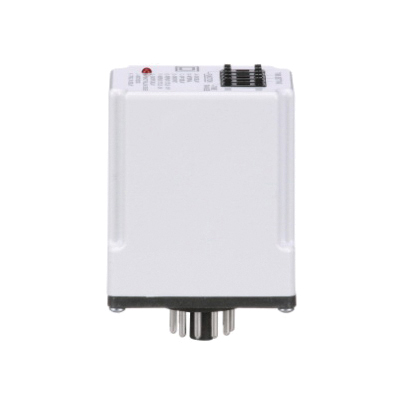

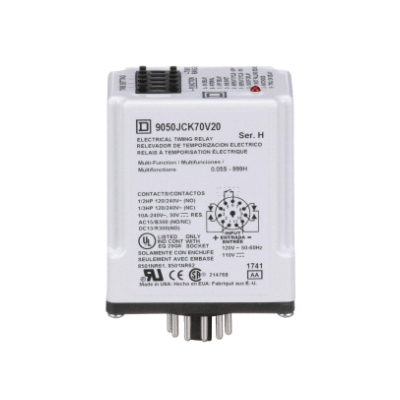

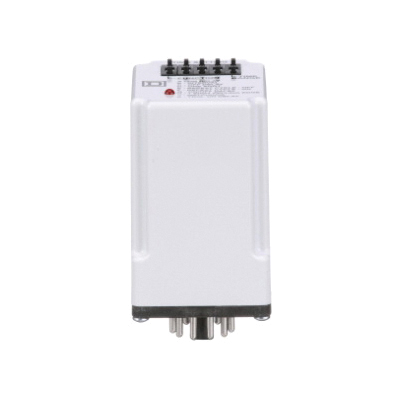

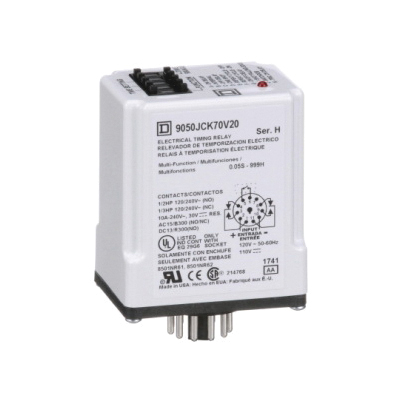

Square D 9050JCK70V20 Multi-Function Programmable Timing Relay, 120 VAC, 110 VDC Input, 0.5 s to 999 hr Time Setting

Square D 9050JCK70V20 Multi-Function Programmable Timing Relay, 120 VAC, 110 VDC Input, 0.5 s to 999 hr Time Setting

Square D 9050JCK70V20 Multi-Function Programmable Timing Relay, 120 VAC, 110 VDC Input, 0.5 s to 999 hr Time Setting 9050JCK70V20

9050JCK plug-in timers are designed to provide low-cost timing in a plug-in housing. This timer can be programed to have an on delay, off delay, interval, one shot, repeat cycle off, repeat cycle on, on/off delay, one shot falling edge, watchdog or trigger on delay timing mode. The timing range of 0.5 s to 999 hr is easily adjustable with thumb wheels on the top of the timer. This plug-in timer plugs into an 8501NR61 or 8501NR62 relay socket. These relay sockets can be mounted on 35 mm DIN 3 mounting track or directly to a panel. All wiring is made to the relay socket. The DPDT contacts are rated 10 a resistive at 120 VAC, 240 VAC and 30 VDC, 3 a inductive at 120 VAC, 240 VAC and 30 VDC, 1/3 hp on the NC contacts at 120 VAC and 240 VAC, 1/2 hp on the NO contacts at 120 VAC and 240 VAC. This plug-in timer is powered up with 120 VAC/110 VDC. 9050JCK plug-in timers are UL listed when the proper 8501NR relay socket is used, UL component recognized and CSA certified.
Square D Multi-Function Programmable Timing Relay, Series: 9050JCK Series, 120 VAC, 110 VDC Input, 3 VA Power Consumption, Timing Relay Functionality: Interval, Off Delay, On Delay, On/Off Delay, One Shot, One Shot Falling Edge, Repeat Cycle, Trigger On Delay, Watchdog, 0.5 s to 999 hr Time Setting Range, +/-0.1 % Accuracy, 10 A at 120/240 VAC, 30 VDC Contact Rating, 2NO-2NC DPDT Contact Configuration, Silver Nickel Contact, 240 VAC Maximum Switching Voltage, 11 Pins, Thumb Wheel Adjustment, Socket Mounting, Octal Base, 2.36 in H x 1.73 in W x 3.58 in D

Accuracy      :      +/-0.1 %
Adjustment Type      :      Thumb Wheel
Base Type      :      Octal
Contact Configuration      :      2NO-2NC DPDT
Contact Material      :      Silver Nickel
Contact Rating      :      10 A at 120/240 VAC, 30 VDC
Dimensions      :      2.36 in H x 1.73 in W x 3.58 in D
Input Voltage      :      120 VAC, 110 VDC
Maximum Switching Voltage      :      240 VAC
Mounting Type      :      Socket
Number of Pins      :      11
Power Consumption      :      3 VA
Series      :      9050JCK Series
Time Setting Range      :      0.5 s to 999 hr
Timing Relay Functionality      :      Interval, Off Delay, On Delay, On/Off Delay, One Shot, One Shot Falling Edge, Repeat Cycle, Trigger On Delay, Watchdog
  • Transient protected
  • Horsepower-rated
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_9050JCK12V20_Catalog.pdf
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_9050JCK12V20_Instruction_Installation_Manual.pdf
  • pdfRoHS https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_9050JCK70V20_RoHS.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_9050JCK70V20_Specification_Sheet.pdf
