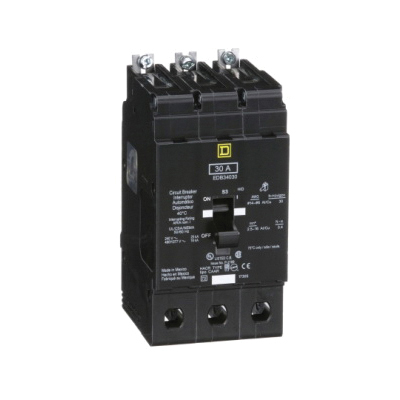

Square D EDB34030 EDB34030

Square D EDB34030 Miniature Circuit Breaker, 480/277 VAC, 30 Amp, 18 kA, 25 kA Interrupt, Three Pole, Thermal Magnetic Trip

Square D EDB34030 Mini Circuit Breaker, 480/277 VAC, 30 A, 18 kA, 25 kA Interrupt, 3-Pole, Thermal Magnetic Trip

Square D EDB34030 Mini Circuit Breaker, 480/277 VAC, 30 A, 18 kA, 25 kA Interrupt, 3-Pole, Thermal Magnetic Trip EDB34030

Square D Mini Circuit Breaker, 30 A, 480/277 VAC, 18 kA, 25 kA Interrupt Rating, 3 Poles, E Frame, Thermal Magnetic Trip, Lug Terminal, 12 to 6 AWG Aluminum, 14 to 6 AWG Copper Wire, Bolt-On Mounting, 104 deg F, Aluminum Terminal, 2.94 in Width, 4.05 in Length, 5.66 in Height

Amperage Rating      :      30 A
Frame Type      :      E
Height      :      5.66 in
Interrupt Rating      :      18 kA, 25 kA
Length      :      4.05 in
Mounting Type      :      Bolt-On
Number of Poles      :      3
Temperature Rating      :      104 deg F
Terminal Material      :      Aluminum
Terminal Type      :      Lug
Trip Type      :      Thermal Magnetic
Voltage Rating      :      480/277 VAC
Width      :      2.94 in
Wire Size      :      12 to 6 AWG Aluminum, 14 to 6 AWG Copper
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_EDB34030_Catalog.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_EDB34030_Specification_Sheet.pdf
