Square D EDB34050 EDB34050

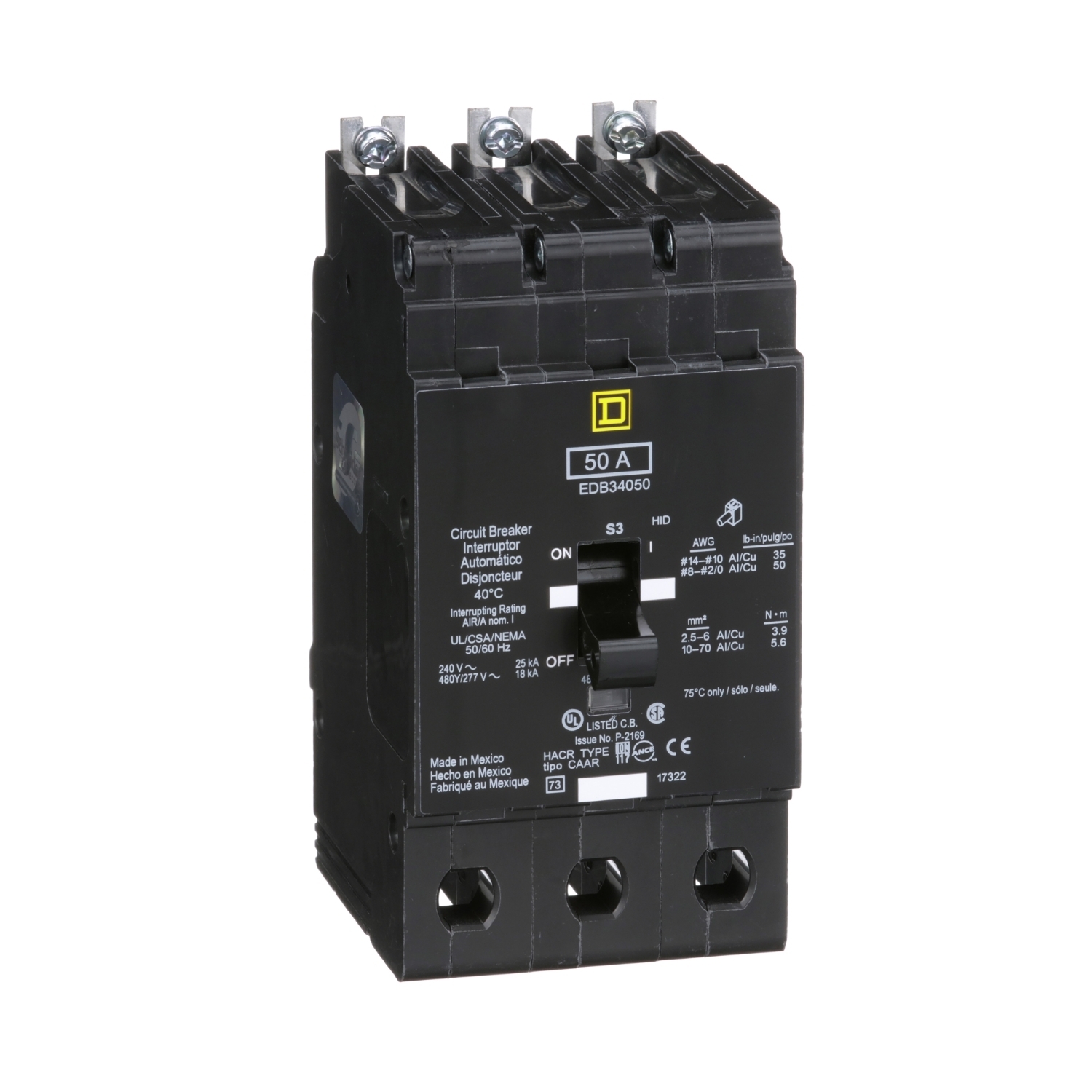

Square D EDB34050 Miniature Circuit Breaker, 480/277 VAC, 50 Amp, 25 kA Interrupt, Three Pole, Thermal Magnetic Trip

Square D EDB34050 Circuit Breaker, 480/277 VAC, 50 A, 25 kA Interrupt, 3-Pole, Thermal Magnetic Trip

Square D EDB34050 Circuit Breaker, 480/277 VAC, 50 A, 25 kA Interrupt, 3-Pole, Thermal Magnetic Trip EDB34050

Square D Circuit Breaker, 50 A, 480/277 VAC, 50/60 Hz, 25 kA Interrupt Rating, 3 Poles, 3 ph Phase, E Frame, Thermal Magnetic Trip, Lug Terminal, Toggle Actuator, 12 to 2/0 AWG Aluminum, 14 to 2/0 AWG Copper Wire, Bolt-On Mounting, 104 deg F, Aluminum Terminal, 2.94 in Width, 4.05 in Length, 5.66 in Height

Actuator Type      :      Toggle
Amperage Rating      :      50 A
Frame Type      :      E
Frequency Rating      :      50/60 Hz
Height      :      5.66 in
Interrupt Rating      :      25 kA
Length      :      4.05 in
Mounting Type      :      Bolt-On
Number of Poles      :      3
Phase      :      3 ph
Temperature Rating      :      104 deg F
Terminal Material      :      Aluminum
Terminal Type      :      Lug
Trip Type      :      Thermal Magnetic
Voltage Rating      :      480/277 VAC
Width      :      2.94 in
Wire Size      :      12 to 2/0 AWG Aluminum, 14 to 2/0 AWG Copper
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_EDB34050_Catalog.pdf
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_EDB34050_Instruction_Installation_Manual.pdf
  • linkVideo Link https://youtu.be/YDNymRCz3Mc
