Square D FA26060AC FA26060AC

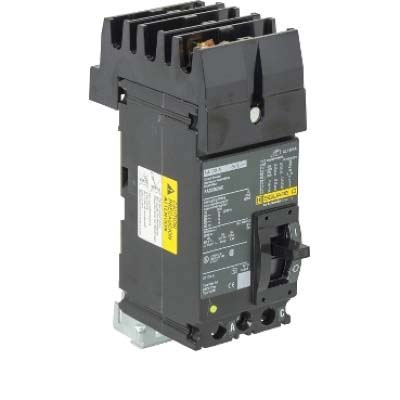

Square D FA26060AC Molded Case Circuit Breaker, 250/600 VAC/VDC, 60 Amp, Double Pole, Thermal Magnetic Trip

Square D FA Series FA26060AC Molded Case Circuit Breaker, 250/600 VAC/VDC, 60 A, 2 -Pole, Thermal Magnetic Trip

Square D FA Series FA26060AC Molded Case Circuit Breaker, 250/600 VAC/VDC, 60 A, 2 -Pole, Thermal Magnetic Trip FA26060AC

Square D Molded Case Circuit Breaker, Series: FA Series, 60 A, 250/600 VAC/VDC, Number of Poles: 2, 2 ph, Connection Type: I-Line, Load Lug, Frame Type: F, Thermal Magnetic Trip, 1450 A Trip, 12 to 1/0 AWG, 14 to 1/0 AWG Wire, 3 in W, 4.13 in L, 6.4 in H, 100 A Frame Size

Additional Information      :      100 A Frame Size
Amperage Rating      :      60 A
Connection Type      :      I-Line, Load Lug
Frame Type      :      F
Height      :      6.4 in
Length      :      4.13 in
Number of Poles      :      2
Phase      :      2 ph
Series      :      FA Series
Trip Range      :      1450 A
Trip Type      :      Thermal Magnetic
Voltage Rating      :      250/600 VAC/VDC
Width      :      3 in
Wire Size      :      12 to 1/0 AWG, 14 to 1/0 AWG
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_FA26030AB_Catalog.pdf
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_FA26030AB_Instruction_Installation_Manual.pdf
