Square D FA34100 FA34100

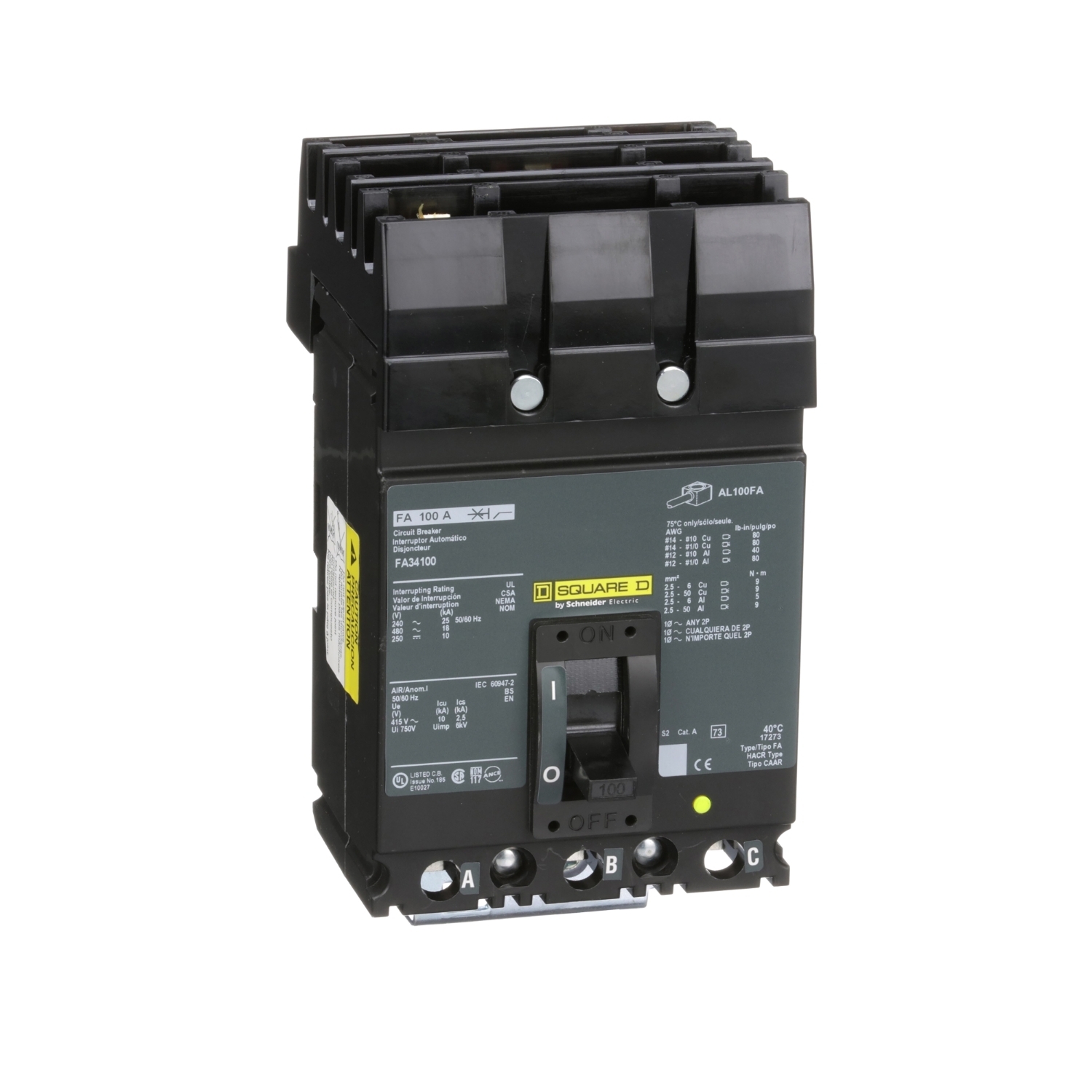

Square D FA34100 Molded Case Circuit Breaker, 480 V, 100 Amp, 18 kA Interrupt, Three Pole, Thermal Magnetic Trip

Square D FA34100 Molded Case Circuit Breaker, 480 V, 100 A, 18 kA Interrupt, 3-Pole, Thermal Magnetic Trip

Square D FA34100 Molded Case Circuit Breaker, 480 V, 100 A, 18 kA Interrupt, 3-Pole, Thermal Magnetic Trip FA34100

Square D Molded Case Circuit Breaker, 100 A, 480 V, 50/60 Hz, 18 kA Interrupt Rating, 3 Poles, 3 ph Phase, F Frame, Thermal Magnetic Trip, Lug Terminal, 12 to 1/0 AWG Aluminum, 14 to 1/0 AWG Copper Wire, Plug-In Mounting, 40 deg F, 4-1/2 in Width, 4.13 in Length, 6.4 in Height

Amperage Rating      :      100 A
Frame Type      :      F
Frequency Rating      :      50/60 Hz
Height      :      6.4 in
Interrupt Rating      :      18 kA
Length      :      4.13 in
Mounting Type      :      Plug-In
Number of Poles      :      3
Phase      :      3 ph
Temperature Rating      :      40 deg F
Terminal Type      :      Lug
Trip Type      :      Thermal Magnetic
Voltage Rating      :      480 V
Width      :      4-1/2 in
Wire Size      :      12 to 1/0 AWG Aluminum, 14 to 1/0 AWG Copper
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_FA34100_Catalog.pdf
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_FA34100_Instruction_Installation_Manual.pdf
  • linkVideo Link https://youtu.be/YDNymRCz3Mc
