Square D FAL22040 FAL22040

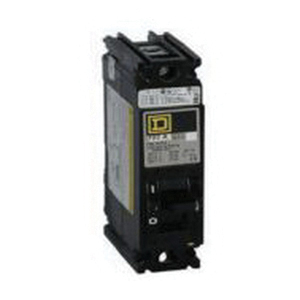

Square D FAL22040 Molded Case Circuit Breaker, 240 VAC, 40 Amp, Double Pole, Thermal Magnetic Trip

Square D FAL Series FAL22040 Molded Case Circuit Breaker, 240 VAC, 40 A, 2 -Pole, Thermal Magnetic Trip

Square D FAL Series FAL22040 Molded Case Circuit Breaker, 240 VAC, 40 A, 2 -Pole, Thermal Magnetic Trip FAL22040

Square D Molded Case Circuit Breaker, Series: FAL Series, 40 A, 240 VAC, Number of Poles: 2, Connection Type: Lug, Frame Type: F, Thermal Magnetic Trip, 850 A Trip, 12 to 1/0 AWG, 14 to 1/0 AWG Wire, Unit Mounting, 3 in W, 4.13 in L, 6.4 in H, 100 A Frame Size

Additional Information      :      100 A Frame Size
Amperage Rating      :      40 A
Connection Type      :      Lug
Frame Type      :      F
Height      :      6.4 in
Length      :      4.13 in
Mounting Type      :      Unit
Number of Poles      :      2
Series      :      FAL Series
Trip Range      :      850 A
Trip Type      :      Thermal Magnetic
Voltage Rating      :      240 VAC
Width      :      3 in
Wire Size      :      12 to 1/0 AWG, 14 to 1/0 AWG
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_FAL32030_Catalog.pdf
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_FAL32030_Instruction_Installation_Manual.pdf
