Square D FAL34040 FAL34040

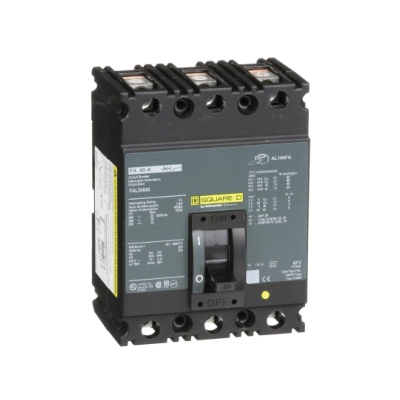

Square D FAL34040 Molded Case Circuit Breaker, 480 VAC, 250 VDC, 40 Amp, 18 kA Interrupt, Three Pole, Thermal Magnetic Trip

Square D FAL34040 Molded Case Circuit Breaker, 480 VAC, 250 VDC, 40 A, 18 kA Interrupt, 3-Pole, Thermal Magnetic Trip

Square D FAL34040 Molded Case Circuit Breaker, 480 VAC, 250 VDC, 40 A, 18 kA Interrupt, 3-Pole, Thermal Magnetic Trip FAL34040

Square D Molded Case Circuit Breaker, Model: FA, 40 A, 480 VAC, 250 VDC, 50/60 Hz, 18 kA Interrupt Rating, 3 Poles, 100 A Frame, Thermal Magnetic Trip, 850 A Trip Range, Lug Terminal, 14 to 1/0 AWG Cu, 12 to 1/0 AWG AI Wire, Unit Mounting, 4-1/2 in Width, 4.13 in Length, 6.4 in Height

Amperage Rating      :      40 A
Frame Type      :      100 A
Frequency Rating      :      50/60 Hz
Height      :      6.4 in
Interrupt Rating      :      18 kA
Length      :      4.13 in
Model      :      FA
Mounting Type      :      Unit
Number of Poles      :      3
Terminal Type      :      Lug
Trip Range      :      850 A
Trip Type      :      Thermal Magnetic
Voltage Rating      :      480 VAC, 250 VDC
Width      :      4-1/2 in
Wire Size      :      14 to 1/0 AWG Cu, 12 to 1/0 AWG AI
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_FAL26015_Instruction_Installation_Manual.pdf
  • pdfRoHS https://media.distributordatasolutions.com/schneider2/2019q4/f53c3f1d589e56260cc500f9db03130c319f0e46.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_FAL34040_Specification_Sheet.pdf
  • pdfSpecification Sheet https://media.distributordatasolutions.com/schneider2/2019q4/d21912dae7b9f42499988a351658d98725486cb2.pdf
