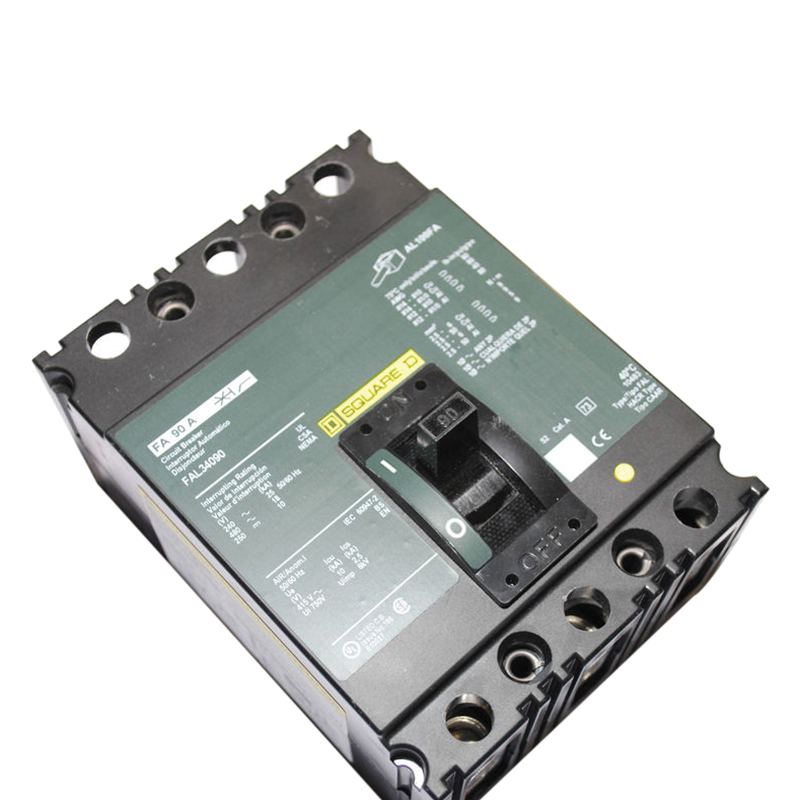

Square D FAL34090 FAL34090

Square D FAL34090 Molded Case Circuit Breaker, 480 VAC/250 VDC, 90 Amp, 10 kA, 18 kA Interrupt, Three Pole

Square D FAL34090 Molded Case Circuit Breaker, 480 VAC/250 VDC, 90 A, 10 kA, 18 kA Interrupt, 3-Pole

Square D FAL34090 Molded Case Circuit Breaker, 480 VAC/250 VDC, 90 A, 10 kA, 18 kA Interrupt, 3-Pole FAL34090

Square D Molded Case Circuit Breaker, 90 A, 480 VAC/250 VDC, 50/60 Hz, 10 kA, 18 kA Interrupt Rating, 3 Poles, 3 ph Phase, F Frame, Thermal Magnetic Trip, Lug Terminal, 12 to 1/0 AWG Aluminum, 14 to 1/0 AWG Copper Wire, Unit Mounting, 40 deg C, 4-1/2 in Width, 4.13 in Length, 6 in Height

Amperage Rating      :      90 A
Frame Type      :      F
Frequency Rating      :      50/60 Hz
Height      :      6 in
Interrupt Rating      :      10 kA, 18 kA
Length      :      4.13 in
Mounting Type      :      Unit
Number of Poles      :      3
Phase      :      3 ph
Temperature Rating      :      40 deg C
Terminal Type      :      Lug
Trip Type      :      Thermal Magnetic
Voltage Rating      :      480 VAC/250 VDC
Width      :      4-1/2 in
Wire Size      :      12 to 1/0 AWG Aluminum, 14 to 1/0 AWG Copper
  • Thermal magnetic molded case circuit breakers are the most common overcurrent protection devices
  • Their primary functions are to provide a means to manually open a circuit and automatically open a circuit under overload or short circuit conditions
  • Thermal magnetic circuit breakers use bi-metals and electromagnetic assemblies to provide overcurrent protection
  • Their characteristic inverse time tripping under overload conditions is ideally suited for many applications varying from residential to heavy industrial loads
