Square D FH36100 FH36100

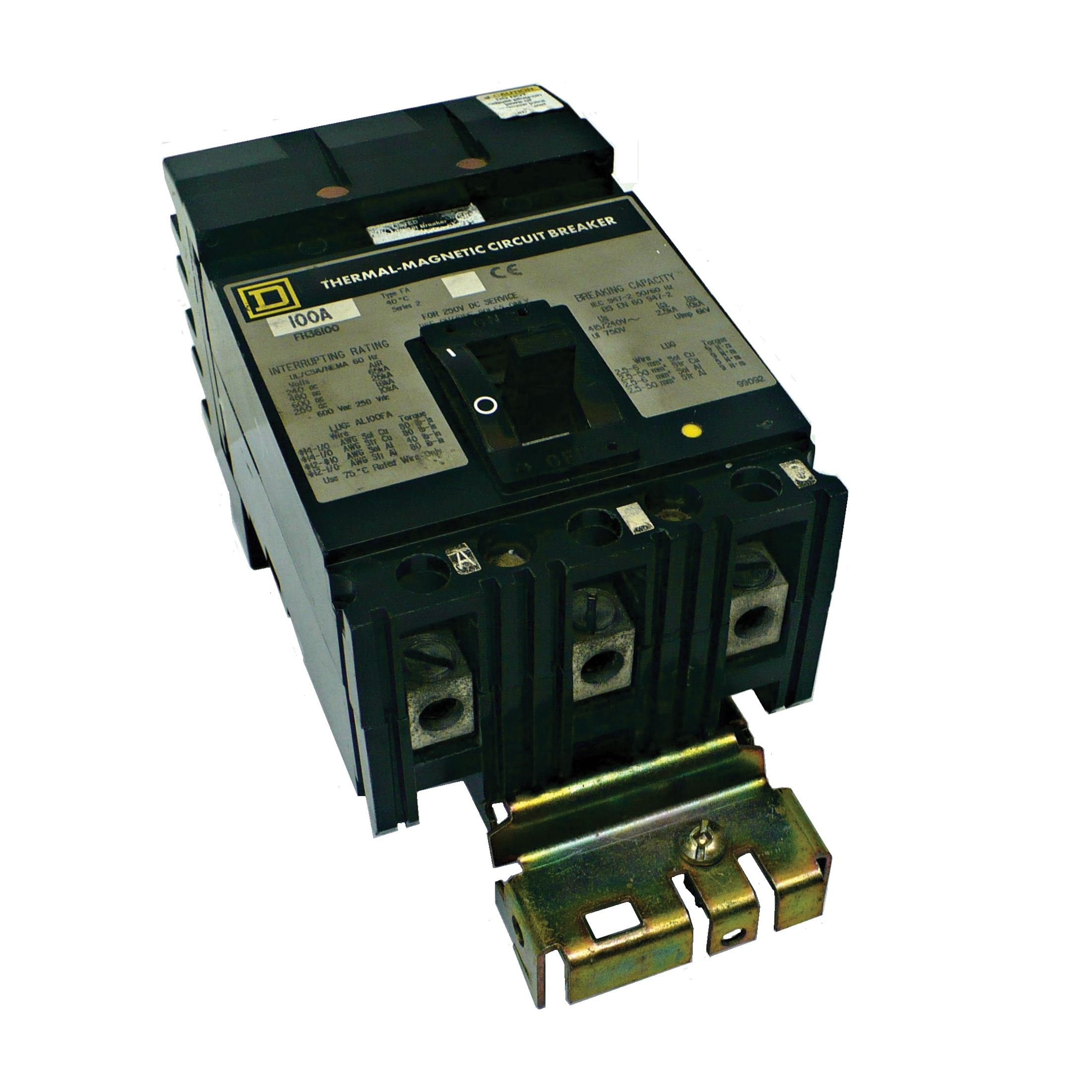

Square D FH36100 Molded Case Circuit Breaker, 600 VAC/250 VDC, 100 Amp, 10 kA, 18 kA Interrupt, Three Pole

Square D FH36100 Molded Case Circuit Breaker, 600 VAC/250 VDC, 100 A, 10 kA, 18 kA Interrupt, 3-Pole

Square D FH36100 Molded Case Circuit Breaker, 600 VAC/250 VDC, 100 A, 10 kA, 18 kA Interrupt, 3-Pole FH36100

Square D Molded Case Circuit Breaker, 100 A, 600 VAC/250 VDC, 50/60 Hz, 10 kA, 18 kA Interrupt Rating, 3 Poles, 3 ph Phase, F Frame, Thermal Magnetic Trip, Lug Terminal, 12 to 1/0 AWG Aluminum, 14 to 1/0 AWG Copper Wire, Plug-On Mounting, 40 deg C, 4-1/2 in Width, 4.13 in Length, 6 in Height

Amperage Rating      :      100 A
Frame Type      :      F
Frequency Rating      :      50/60 Hz
Height      :      6 in
Interrupt Rating      :      10 kA, 18 kA
Length      :      4.13 in
Mounting Type      :      Plug-On
Number of Poles      :      3
Phase      :      3 ph
Temperature Rating      :      40 deg C
Terminal Type      :      Lug
Trip Type      :      Thermal Magnetic
Voltage Rating      :      600 VAC/250 VDC
Width      :      4-1/2 in
Wire Size      :      12 to 1/0 AWG Aluminum, 14 to 1/0 AWG Copper
  • F frame, 100 A
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_FH36050_Catalog.pdf
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_FH36015_Instruction_Installation_Manual.pdf
