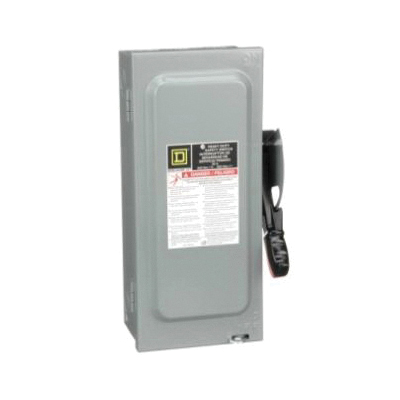

Square D H321N Heavy-Duty Safety Switch, 240 VAC/250 VDC, 30 Amp, 3 Phase, Three Pole, 7-1/2 HP, 4-Wire

The Square D by Schneider Electric brand heavy-duty safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. F series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL 98 standards require. All heavy-duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock and a color-coded indicator handle. This single throw safety switch has a rated current of 30 a and is UL listed with a NEMA 1 rating of protection. This three-pole switch has operational voltage ratings of 240 VAC and 250 VDC. The enclosure is made of steel and has a neutral (factory installed). This fusible disconnect has a short circuit current rating of 10 to 200 kA. This safety switch accepts H,J,K,L,R fuse types and is surface-mounted. This switch comes with an 18 months warranty.
Square D Heavy-Duty Safety Switch, 240 VAC/250 VDC, 30 A, 50/60 Hz, 3 ph, 3 Pole, 7-1/2 hp HP Rating, Disconnect Type: Fusible, With Neutral With Neutral/Without Neutral, 4 Wires, 14 to 6 AWG Wire, Lug Electrical Connection Type, Surface Mount, 14.6 in H x 6.5 in W x 4.88 in D

• Quick-make, quick-break operating mechanism
• Dual cover interlock blocks opening cover if switch is on and switching on if cover is open

• Catalog https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_H321N_Catalog.pdf
• Instruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_H321N_Instruction_Installation_Manual.pdf
• Specification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_H321N_Specification_Sheet.pdf
