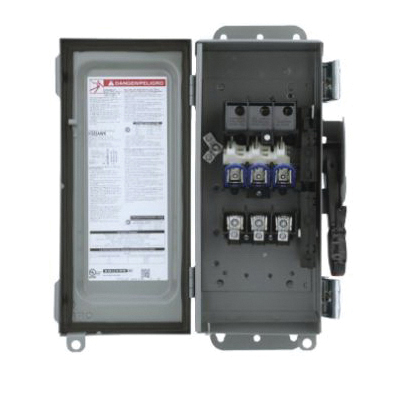

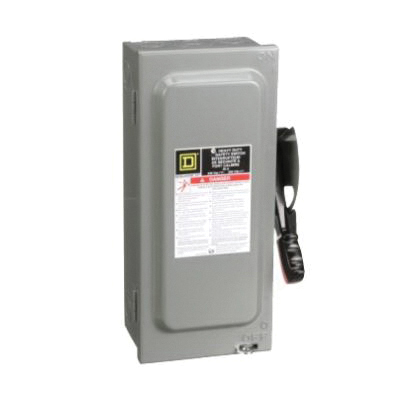

Square D H322AWK Heavy-Duty Safety Switch, 240 VAC/250 VDC, 60 Amp, 3 Phase, Three Pole, 15 HP, 3-Wire, NEMA 1 Enclosure

The Square D by Schneider Electric brand heavy-duty safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. Heavy-duty safety switches are utilized from commercial and institutional to industrial and manufacturing facilities. F series safety switches provide significantly higher levels of mechanical endurance than NEMA type KS-1 or UL 98 standards require. The design life of a F series switch is a minimum of three times the NEMA requirement. An abundance of copper is used in the heaviest current carrying power paths of all Square D by Schneider Electric heavy-duty safety switches. The more copper for current carrying paths, the lower the temperature rise. Managing temperatures inside the switch is the key to providing greater service life. This heavy-duty single throw safety switch has a rated current of 60 a and has a NEMA 3R/12 degree of protection. This fusible disconnect has a short circuit rating of 200 kA at 240 VAC. This safety switch has a galvannealed steel enclosure and is surface-mounted. This product is compatible with H or K, R, J or L fuses. The acceptable AWG gauge for this product is 14 or 3 AWG, copper and has a tightening torque of 50 to 50 lb-in. This product complies to UL file no. E2875 standards and comes with an 18 month warranty. Dimensions for this product are 14.6 in H, 6.63 in W, 4.96 in D.
Square D Heavy-Duty Safety Switch, 240 VAC/250 VDC, 60 A, 50/60 Hz, 3 ph, 3 Pole, 15 hp HP Rating, Disconnect Type: Fusible, Without Neutral With Neutral/Without Neutral, 3 Wires, 14 to 3 AWG Wire, Lug Electrical Connection Type, NEMA 1, Surface Mount, 14.6 in H x 6.63 in W x 4.96 in D

• Catalog https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_H322AWK_Catalog.pdf
• Instruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_H322AWK_Instruction_Installation_Manual.pdf
• Specification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_H322AWK_Specification_Sheet.pdf
