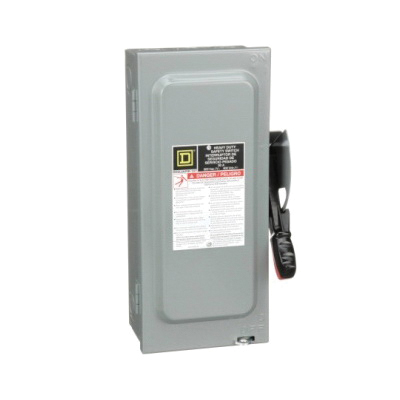

Square D H361N Safety Switch, Heavy Duty Rating, 600 VAC/VDC, 30 Amp, 3 Phase, Three Pole, 20 HP, 4-Wire
Square D H361N Safety Switch, Heavy Duty Rating, 600 VAC/VDC, 30 A, 3 ph -Phase, 3 -Pole, 20 hp, 4 -Wire
Square D H361N Safety Switch, Heavy Duty Rating, 600 VAC/VDC, 30 A, 3 ph -Phase, 3 -Pole, 20 hp, 4 -Wire H361N- Brand Name: Square D
- Part Number: H361N
- UPC: 785901481911
- Check Stock
Add To Favorites ListSquare D Safety Switch, Duty Rating: Heavy, 600 VAC/VDC, 30 A, 50/60 Hz, 3 ph, 3 Pole, 20 hp HP Rating, Disconnect Type: Fusible, With Neutral With Neutral/Without Neutral, 4 Wires, 12 to 6 AWG, 14 to 6 AWG Wire, NEMA 1, Surface Mount, 14.6 in H x 7.55 in W x 4.87 in D
| Amperage Rating | : | 30 A |
| Dimensions | : | 14.6 in H x 7.55 in W x 4.87 in D |
| Disconnect Type | : | Fusible |
| Duty Rating | : | Heavy |
| Enclosure Type | : | NEMA 1 |
| Frequency Rating | : | 50/60 Hz |
| HP Rating | : | 20 hp |
| Mounting Type | : | Surface |
| Number of Poles | : | 3 |
| Number of Wires | : | 4 |
| Phase | : | 3 ph |
| Voltage Rating | : | 600 VAC/VDC |
| Wire Size | : | 12 to 6 AWG, 14 to 6 AWG |
| With Neutral/Without Neutral | : | With Neutral |
Full Engineering Drawing
