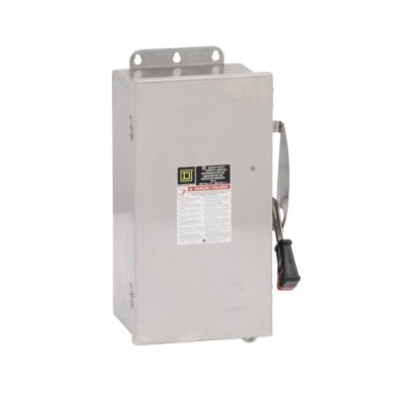

Square D H362DS Heavy-Duty Safety Switch, 600 VAC/VDC, 60 Amp, 3 Phase, Three Pole, 50 HP, 3-Wire, NEMA 12 Enclosure

The Square D by Schneider Electric brand heavy-duty safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. F series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL 98 standards require. All heavy-duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock and a color-coded indicator handle. This single throw safety switch has a rated current of 60 a and is UL listed with a NEMA 3/3R4/4X/12 rating of protection. This three-pole switch has operational voltage ratings of and 600 VAC/VDC. The enclosure is made of stainless steel 304 and has no neutral installed. This fusible disconnect has a short circuit current rating of 10 to 200 kA. This safety switch accepts H,J,K,L,R fuse types and is surface-mounted. This switch comes with an 18 months warranty.
Square D Heavy-Duty Safety Switch, 600 VAC/VDC, 60 A, 50/60 Hz, 3 ph, 3 Pole, 50 hp HP Rating, Disconnect Type: Fusible, Without Neutral With Neutral/Without Neutral, 3 Wires, 14 to 3 AWG Wire, Lug Electrical Connection Type, NEMA 12, Surface Mount, 16.87 in H x 10.81 in W x 6.97 in D

• Quick-make, quick-break operating mechanism
• Dual cover interlock blocks opening cover if switch is on and switching on if cover is open

• Instruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_H362DS_Instruction_Installation_Manual.pdf
• Specification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_H362DS_Specification_Sheet.pdf
