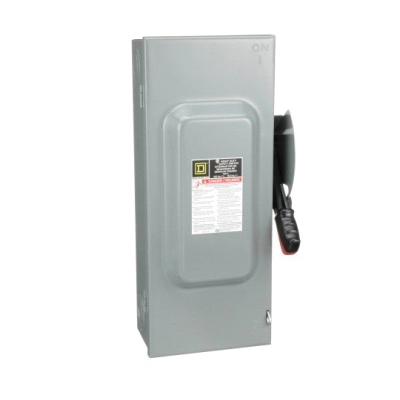

Square D H363N Safety Switch, Heavy Duty Rating, 600 VAC/VDC, 100 Amp, 3 Phase, Three Pole, 100 HP, 4-Wire
Square D H363N Safety Switch, Heavy Duty Rating, 600 VAC/VDC, 100 A, 3 ph -Phase, 3 -Pole, 100 hp, 4 -Wire
Square D H363N Safety Switch, Heavy Duty Rating, 600 VAC/VDC, 100 A, 3 ph -Phase, 3 -Pole, 100 hp, 4 -Wire H363N- Brand Name: Square D
- Part Number: H363N
- UPC: 785901482277
- Check Stock
Add To Favorites ListSquare D Safety Switch, Duty Rating: Heavy, 600 VAC/VDC, 100 A, 50/60 Hz, 3 ph, 3 Pole, 100 hp HP Rating, Disconnect Type: Fusible, With Neutral With Neutral/Without Neutral, 4 Wires, 12 to 1/0 AWG, 14 to 1/0 AWG Wire, NEMA 1, Surface Mount, 21.25 in H x 10.25 in W x 6.38 in D
| Amperage Rating | : | 100 A |
| Dimensions | : | 21.25 in H x 10.25 in W x 6.38 in D |
| Disconnect Type | : | Fusible |
| Duty Rating | : | Heavy |
| Enclosure Type | : | NEMA 1 |
| Frequency Rating | : | 50/60 Hz |
| HP Rating | : | 100 hp |
| Mounting Type | : | Surface |
| Number of Poles | : | 3 |
| Number of Wires | : | 4 |
| Phase | : | 3 ph |
| Voltage Rating | : | 600 VAC/VDC |
| Wire Size | : | 12 to 1/0 AWG, 14 to 1/0 AWG |
| With Neutral/Without Neutral | : | With Neutral |
Full Engineering Drawing
