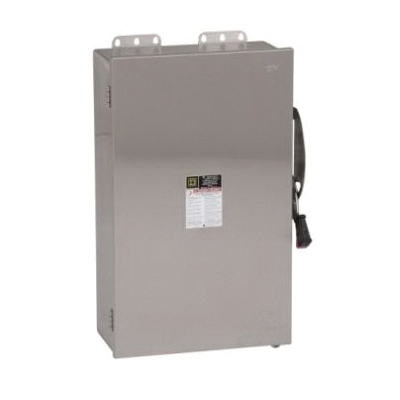

Square D H364DS H364DS

Square D H364DS Heavy-Duty Safety Switch, 600 VAC/VDC, 200 Amp, 3 Phase, Three Pole, 150 HP, 3-Wire, NEMA 12 Enclosure

Square D H364DS Heavy-Duty Safety Switch, 600 VAC/VDC, 200 A, 3 ph -Phase, 3 -Pole, 150 hp, 3 -Wire, NEMA 12 Enclosure

Square D H364DS Heavy-Duty Safety Switch, 600 VAC/VDC, 200 A, 3 ph -Phase, 3 -Pole, 150 hp, 3 -Wire, NEMA 12 Enclosure H364DS

The Square D by Schneider Electric brand heavy-duty safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. Heavy-duty safety switches are utilized from commercial and institutional to industrial and manufacturing facilities. F series safety switches provide significantly higher levels of mechanical endurance than NEMA type KS-1 or UL 98 standards require. The design life of a F series switch is a minimum of three times the NEMA requirement. An abundance of copper is used in the heaviest current carrying power paths of all Square D by Schneider Electric heavy-duty safety switches. The more copper for current carrying paths, the lower the temperature rise. Managing temperatures inside the switch is the key to providing greater service life. This heavy-duty single throw safety switch has a rated current of 100 a and has a NEMA 4/4X/5 degree of protection. This fusible disconnect has a short circuit rating of 200 kA at 600 VAC. This safety switch has a stainless steel 304 enclosure and is surface-mounted. This product is compatible with H or K, R, J or L fuses. Z the acceptable AWG gauge for this product is 12 or 1/0 AWG, aluminum and has a tightening torque of 50 to 50 lb-in. This product complies to UL file no. E2875 standards and comes with an 18 month warranty. Dimensions for this product are 20.82 in H, 11.25 in W, 6.97 in D. Dimensions for this product are 20.82 in H, 11.25 in W, 6.97 in D.
Square D Heavy-Duty Safety Switch, 600 VAC/VDC, 200 A, 50/60 Hz, 3 ph, 3 Pole, 150 hp HP Rating, Disconnect Type: Fusible, Without Neutral With Neutral/Without Neutral, 3 Wires, 6 AWG to 250 kcmil Wire, Lug Electrical Connection Type, NEMA 12, Surface Mount, 29 in H x 19.25 in W x 8.88 in D

Amperage Rating      :      200 A
Dimensions      :      29 in H x 19.25 in W x 8.88 in D
Disconnect Type      :      Fusible
Electrical Connection Type      :      Lug
Enclosure Type      :      NEMA 12
Frequency Rating      :      50/60 Hz
HP Rating      :      150 hp
Mounting Type      :      Surface
Number of Poles      :      3
Number of Wires      :      3
Phase      :      3 ph
Voltage Rating      :      600 VAC/VDC
Wire Size      :      6 AWG to 250 kcmil
With Neutral/Without Neutral      :      Without Neutral
  • Quick-make, quick-break operating mechanism
  • Dual cover interlock blocks opening cover if switch is on and switching on if cover is open
