Square D H60XFA H60XFA

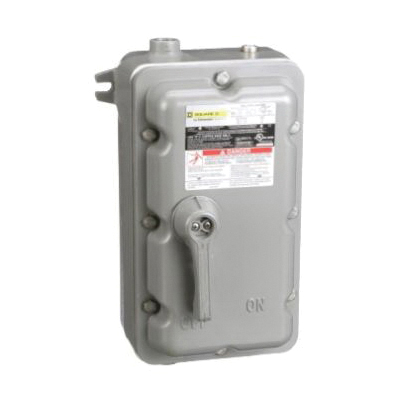

Square D H60XFA Heavy-Duty Safety Switch, 600 VAC/250 VDC, 60 Amp, 3 ph-Phase, Three Pole, 50 HP, 9, NEMA 7 Enclosure

Square D H60XFA Heavy-Duty Safety Switch, 600 VAC/250 VDC, 60 A, 3 ph-Phase, 3-Pole, 50 hp, 9, NEMA 7 Enclosure

Square D H60XFA Heavy-Duty Safety Switch, 600 VAC/250 VDC, 60 A, 3 ph-Phase, 3-Pole, 50 hp, 9, NEMA 7 Enclosure H60XFA

The Square D by Schneider Electric brand heavy-duty safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. Heavy-duty safety switches are utilized from commercial and institutional to industrial and manufacturing facilities. F series safety switches provide significantly higher levels of mechanical endurance than NEMA type KS-1 or UL 98 standards require. The design life of a F series switch is a minimum of three times the NEMA requirement. An abundance of copper is used in the heaviest current carrying power paths of all Square D by Schneider Electric heavy-duty safety switches. The more copper for current carrying paths, the lower the temperature rise. Managing temperatures inside the switch is the key to providing greater service life. This heavy-duty single throw safety switch has a rated current of 60 a and has a NEMA 7/9 degree of protection. This fusible disconnect has a short circuit rating of 200 kA at 600 VAC. This safety switch has a cast aluminum enclosure and is surface-mounted. This product is compatible with H or K, R, J or L fuses. The acceptable AWG gauge for this product is 14 or 3 AWG, copper and has a tightening torque of 50 to 50 lb-in. This product complies to UL file no. E2875 and CSA standards and comes with an 18 month warranty. Dimensions for this product are 15.93 in H, 9.87 in W, 6.96 in D.
Square D Heavy-Duty Safety Switch, 600 VAC/250 VDC, 60 A, 50/60 Hz, 3 ph, 3 Pole, 50 hp HP Rating, Disconnect Type: Fusible, Without Neutral With Neutral/Without Neutral, 14 to 3 AWG Wire, Screw Electrical Connection Type, 9, NEMA 7, Surface Mount, 15.93 in H x 9.87 in W x 6.96 in D

Amperage Rating      :      60 A
Dimensions      :      15.93 in H x 9.87 in W x 6.96 in D
Disconnect Type      :      Fusible
Electrical Connection Type      :      Screw
Enclosure Type      :      9, NEMA 7
Frequency Rating      :      50/60 Hz
HP Rating      :      50 hp
Mounting Type      :      Surface
Number of Poles      :      3
Phase      :      3 ph
Voltage Rating      :      600 VAC/250 VDC
Wire Size      :      14 to 3 AWG
With Neutral/Without Neutral      :      Without Neutral
  • Quick-make, quick-break operating mechanism
  • Dual cover interlock blocks opening cover if switch is on and switching on if cover is open
  • Suitable for use as service entrance equipment
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_H322AWK_Catalog.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_H60XFA_Specification_Sheet.pdf
