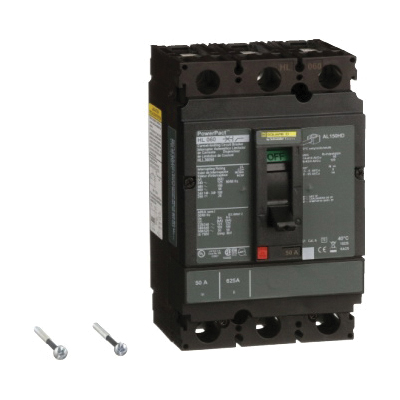

Square D HLL36050 Molded Case Circuit Breaker, 600 VAC, 50 Amp, 50 kA Interrupt, Three Pole, Thermal Magnetic Trip

PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 50 kA at 600 VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT H, 50 A, 3 pole, circuit breaker has a breaking capacity of 50 kA at 600 VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT H circuit breakers comply to UL, CSA, NOM and IEC standards and are CE marked.
Square D Molded Case Circuit Breaker, Model: PowerPacT, 50 A, 600 VAC, 50/60 Hz, 50 kA Interrupt Rating, 3 Poles, Lug Connection, H Frame, Thermal Magnetic Trip, 850 A Magnetic Trip Range, IP40 Enclosure, Toggle Actuator, 14 to 3/0 AWG Wire, Unit Mounting, 28 to 158 deg F, 4.09 in Width, 6.42 in Height, Black, Additional Information: 3.39 in D, <6561.68 ft Altitude
