Square D HOM120 HOM120

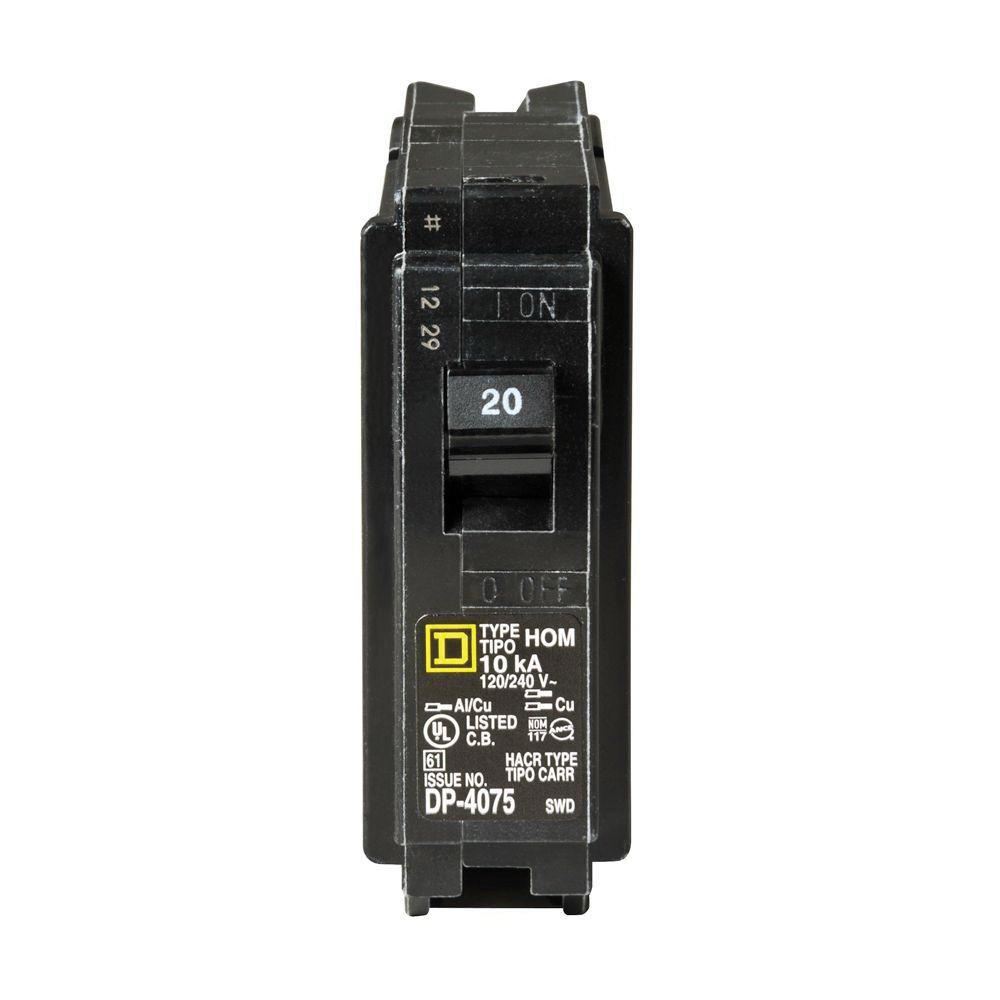

Square D HOM120 Miniature Circuit Breaker, 120 VAC, 20 Amp, 10 kA Interrupt, Single Pole

Square D Homeline™ HOM120 Miniature Circuit Breaker, 120 VAC, 20 A, 10 kA Interrupt, 1-Pole

Square D Homeline™ HOM120 Miniature Circuit Breaker, 120 VAC, 20 A, 10 kA Interrupt, 1-Pole HOM120

Engineered for value, Homeline circuit breakers are designed for fast installation, reliability and superior circuit protection. With industry leading innovations and exclusive features, Square D Homeline circuit breakers are the smart, safe, reliable choice.
Square D Miniature Circuit Breaker, 20 A, 120 VAC, 50/60 Hz, 10 kA Interrupt Rating, 1 Poles, 1 ph Phase, Screw Clamp Connection, 14 to 8 AWG Aluminum, 14 to 8 AWG Copper, 14 to 10 AWG Copper Wire, Plug-In Mounting, 104 deg F, 1 in Width, 2.98 in Length, 3.13 in Height

Amperage Rating      :      20 A
Connection Type      :      Screw Clamp
Frequency Rating      :      50/60 Hz
Height      :      3.13 in
Interrupt Rating      :      10 kA
Length      :      2.98 in
Mounting Type      :      Plug-In
Number of Poles      :      1
Phase      :      1 ph
Temperature Rating      :      104 deg F
Voltage Rating      :      120 VAC
Width      :      1 in
Wire Size      :      14 to 8 AWG Aluminum, 14 to 8 AWG Copper, 14 to 10 AWG Copper
  • Faster and easier wiring, all spaces accept tandems
  • Frees gutter space, no pigtails
  • Saves wire, fully distributed split neutral bar
  • Faster installation, fewer connections
  • Easier trouble shooting, time saver diagnostics provide additional circuit information at the touch of a button
