Square D HOM1224L125PGC HOM1224L125PGC

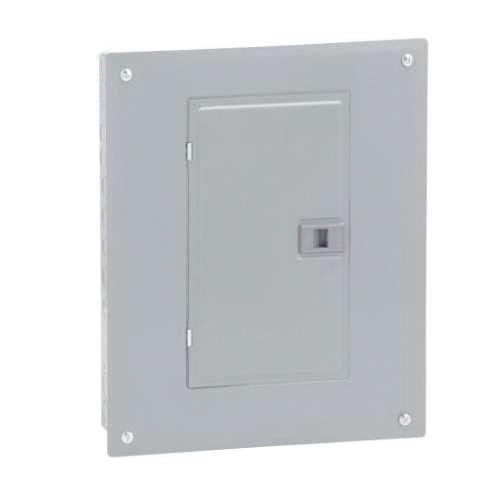

Square D HOM1224L125PGC Main Lug Load Center, 125 Amp, 120/240 VAC, 10 kA Interrupt, Single Pole

Square D Homeline™ HOM1224L125PGC Main Lug Load Center, 125 A, 120/240 VAC, 10 kA Interrupt, 1-Pole

Square D Homeline™ HOM1224L125PGC Main Lug Load Center, 125 A, 120/240 VAC, 10 kA Interrupt, 1-Pole HOM1224L125PGC

Square D Homeline™ Main Lug Load Center, 125 A, 120/240 VAC, 10 kA Interrupt, 3-Wire Wiring Configuration, Tandem Breaker, 1 Pole, 1 ph, 12 Spaces, 24 Circuits, Aluminum Bus, 6 to 1 AWG, 6 to 2/0 AWG Wire, Plug-On Neutral Type, Flush, Surface Mount, NEMA 1, Sheet Steel, Baked Enamel, Gray, 23 to 104 deg F, 17.91 in H x 3.74 in W x 14.25 in D

Amperage Rating      :      125 A
Breaker Type      :      Tandem
Bus Material      :      Aluminum
Color      :      Gray
Dimensions      :      17.91 in H x 3.74 in W x 14.25 in D
Enclosure Type      :      NEMA 1
Finish      :      Baked Enamel
Interrupt Rating      :      10 kA
Material      :      Sheet Steel
Mounting Type      :      Flush, Surface
Neutral Type      :      Plug-On
Number of Circuits      :      24
Number of Poles      :      1
Number of Spaces      :      12
Phase      :      1 ph
Temperature Rating      :      23 to 104 deg F
Voltage Rating      :      120/240 VAC
Wire Size      :      6 to 1 AWG, 6 to 2/0 AWG
Wiring Configuration      :      3-Wire
  • Plug-on neutral ready and built with a plated, aluminum bus bar
  • Ground bar is factory installed
  • Engineered for fast installation and wire savings
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_QO124M100PC_Catalog.pdf
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_QO124M100PC_Instruction_Installation_Manual.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_HOM1224L125PGC_Specification_Sheet.pdf
