Square D HOM1224M100PC HOM1224M100PC

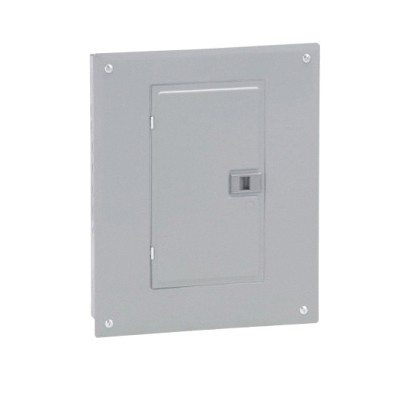

Square D HOM1224M100PC Load Center, 100 Amp, 120/240 VAC, 22 kA Interrupt, Single Pole

Square D Homeline™ HOM1224M100PC Load Center, 100 A, 120/240 VAC, 22 kA Interrupt, 1 -Pole

Square D Homeline™ HOM1224M100PC Load Center, 100 A, 120/240 VAC, 22 kA Interrupt, 1 -Pole HOM1224M100PC

Square D Homeline™ Load Center, 100 A, 120/240 VAC, 22 kA Interrupt, 3-Wire Wiring Configuration, 1 Pole, 1 ph, 12 Spaces, 24 Circuits, Aluminum Bus, 6 to 2/0 AWG Wire, Plug-On Neutral Type, NEMA 1, Sheet Steel, 23 to 104 deg F, 17.91 in H x 14.25 in W x 3.74 in D

Amperage Rating      :      100 A
Bus Material      :      Aluminum
Dimensions      :      17.91 in H x 14.25 in W x 3.74 in D
Enclosure Type      :      NEMA 1
Interrupt Rating      :      22 kA
Material      :      Sheet Steel
Neutral Type      :      Plug-On
Number of Circuits      :      24
Number of Poles      :      1
Number of Spaces      :      12
Phase      :      1 ph
Temperature Rating      :      23 to 104 deg F
Voltage Rating      :      120/240 VAC
Wire Size      :      6 to 2/0 AWG
Wiring Configuration      :      3-Wire
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_HOM1224M100PC_Catalog.pdf
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_HOM1224M100PC_Instruction_Installation_Manual.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_HOM1224M100PC_Specification_Sheet.pdf
