Square D HOM240CP HOM240CP

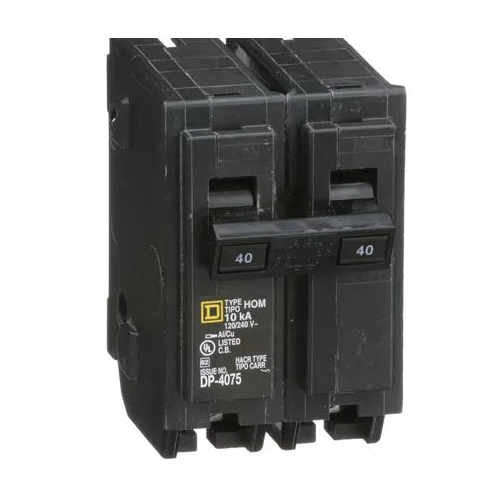

Square D HOM240CP Miniature Circuit Breaker, 120/240 VAC, 40 Amp, 10 kA Interrupt, Double Pole, Fixed Trip

Square D Homeline™ HOM240CP Circuit Breaker, 120/240 VAC, 40 A, 10 kA Interrupt, 2-Pole, Fixed Trip

Square D Homeline™ HOM240CP Circuit Breaker, 120/240 VAC, 40 A, 10 kA Interrupt, 2-Pole, Fixed Trip HOM240CP

Engineered for value, Homeline circuit breakers are designed for fast installation, reliability and superior circuit protection. With industry leading innovations and exclusive features, Square D Homeline circuit breakers are the smart, safe, reliable choice.
Square D Circuit Breaker, 40 A, 120/240 VAC, 50/60 Hz, 10 kA Interrupt Rating, 2 Poles, 1 ph Phase, Box Lug Connection, 2-Space Frame, Fixed Trip, 8 to 2 AWG Aluminum/Copper Wire, Plug-In Mounting, 104 deg F, 2 in Width, 2.98 in Length, 3.13 in Height, Black

Amperage Rating      :      40 A
Color      :      Black
Connection Type      :      Box Lug
Frame Type      :      2-Space
Frequency Rating      :      50/60 Hz
Height      :      3.13 in
Interrupt Rating      :      10 kA
Length      :      2.98 in
Mounting Type      :      Plug-In
Number of Poles      :      2
Phase      :      1 ph
Temperature Rating      :      104 deg F
Trip Type      :      Fixed
Voltage Rating      :      120/240 VAC
Width      :      2 in
Wire Size      :      8 to 2 AWG Aluminum/Copper
