Square D HOM24L70RBCP HOM24L70RBCP

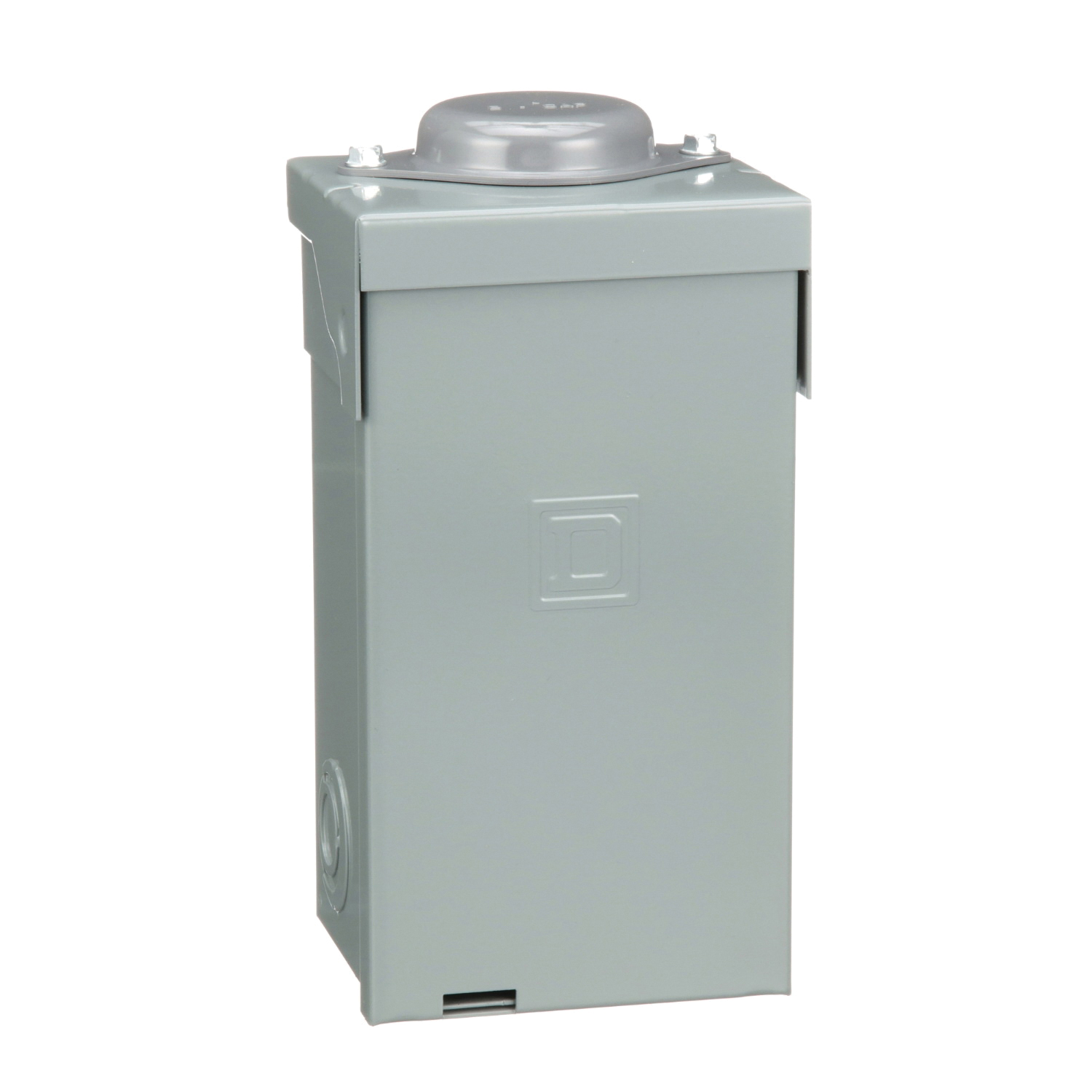

Square D HOM24L70RBCP Load Center, 70 Amp, 120/240 VAC, Single Pole

Square D Homeline™ HOM24L70RBCP Load Center, 70 A, 120/240 VAC, 1 -Pole

Square D Homeline™ HOM24L70RBCP Load Center, 70 A, 120/240 VAC, 1 -Pole HOM24L70RBCP

The Square D Homeline™ load centers and circuit breakers, HOM24L70RBCP are part of a comprehensive family of circuit protection solutions, are part of a comprehensive family of circuit protection solutions, plug-on neutral load main breakers centers with lug connections.
Square D Homeline™ Load Center, 70 A, 120/240 VAC, 3-Wire Wiring Configuration, Tandem Breaker, 1 Pole, 1 ph, 2 Spaces, 4 Circuits, Aluminum Bus, 12 to 3 AWG, 14 to 4 AWG Wire, NEMA 3R, Steel, Baked Enamel, Gray, 23 to 104 deg F, 9.37 in H x 4.88 in W x 4.02 in D, Additional Information: Tin-Plated Busbar

Additional Information      :      Tin-Plated Busbar
Amperage Rating      :      70 A
Breaker Type      :      Tandem
Bus Material      :      Aluminum
Color      :      Gray
Dimensions      :      9.37 in H x 4.88 in W x 4.02 in D
Enclosure Type      :      NEMA 3R
Finish      :      Baked Enamel
Material      :      Steel
Number of Circuits      :      4
Number of Poles      :      1
Number of Spaces      :      2
Phase      :      1 ph
Temperature Rating      :      23 to 104 deg F
Voltage Rating      :      120/240 VAC
Wire Size      :      12 to 3 AWG, 14 to 4 AWG
Wiring Configuration      :      3-Wire
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_HOM24L70RBCP_Catalog.pdf
  • pdfFull Engineering Drawing https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_HOM24L70RBCP_Full_Engineering_Drawing.pdf
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_HOM24L70RBCP_Instruction_Installation_Manual.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_HOM24L70RBCP_Specification_Sheet.pdf
