Square D HOM24L70SCP HOM24L70SCP

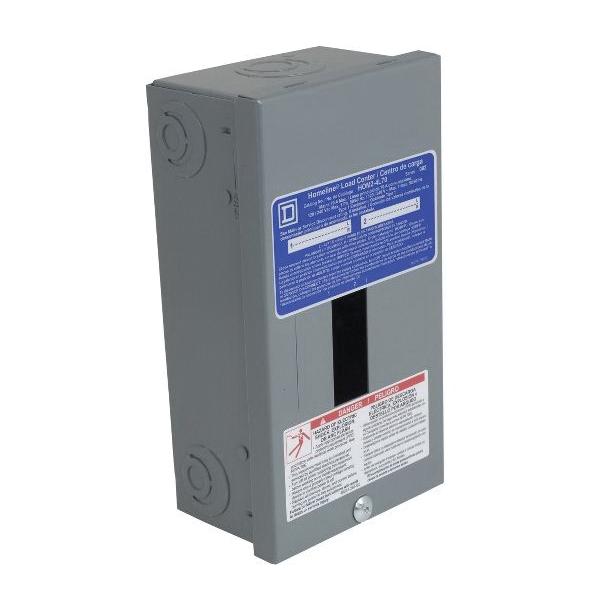

Square D HOM24L70SCP Main Lug Load Center, 70 Amp, 120/240 VAC, 10 kA Interrupt, Single Pole

Square D Homeline™ HOM24L70SCP Main Lug Load Center, 70 A, 120/240 VAC, 10 kA Interrupt, 1 -Pole

Square D Homeline™ HOM24L70SCP Main Lug Load Center, 70 A, 120/240 VAC, 10 kA Interrupt, 1 -Pole HOM24L70SCP

Square D Homeline™ Main Lug Load Center, 70 A, 120/240 VAC, 10 kA Interrupt, 3-Wire Wiring Configuration, Tandem Breaker, 1 Pole, 1 ph, 2 Spaces, 4 Circuits, Aluminum Bus, 12 to 3 AWG, 14 to 4 AWG Wire, Surface Mount, NEMA 1, Sheet Steel, Baked Enamel, Gray, 23 to 104 deg F, 9.29 in H x 4.8 in W x 3.19 in D

Amperage Rating      :      70 A
Breaker Type      :      Tandem
Bus Material      :      Aluminum
Color      :      Gray
Dimensions      :      9.29 in H x 4.8 in W x 3.19 in D
Enclosure Type      :      NEMA 1
Finish      :      Baked Enamel
Interrupt Rating      :      10 kA
Material      :      Sheet Steel
Mounting Type      :      Surface
Number of Circuits      :      4
Number of Poles      :      1
Number of Spaces      :      2
Phase      :      1 ph
Temperature Rating      :      23 to 104 deg F
Voltage Rating      :      120/240 VAC
Wire Size      :      12 to 3 AWG, 14 to 4 AWG
Wiring Configuration      :      3-Wire
  • Can be used when spaces for more circuits are needed, as a secondary or add on load center connected to the main disconnect load center
  • Engineered for fast installation and wire savings
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_QO124M100PC_Catalog.pdf
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_HOM612L100SCP_Instruction_Installation_Manual.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_HOM24L70SCP_Specification_Sheet.pdf
