Square D HOM3060M200PCVP HOM3060M200PCVP

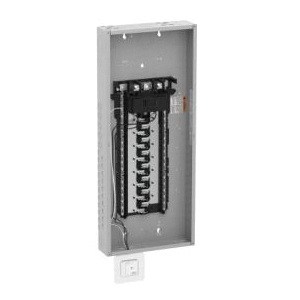

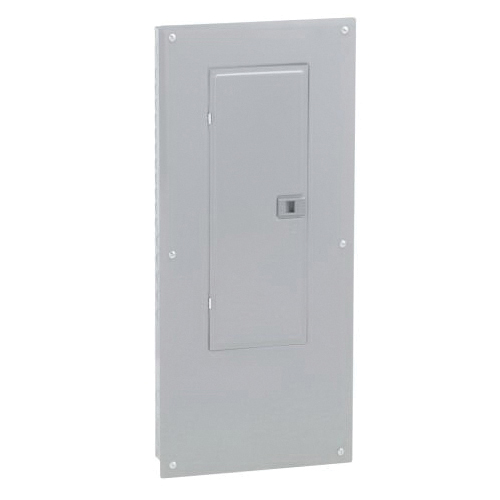

Square D HOM3060M200PCVP Main Breaker Load Center, 120/240 VAC, 200 Amp, 60 -Pole, 22 kA Interrupt

Square D Homeline™ HOM3060M200PCVP Main Breaker Load Center, 120/240 VAC, 200 A, 60 -Pole, 22 kA Interrupt

Square D Homeline™ HOM3060M200PCVP Main Breaker Load Center, 120/240 VAC, 200 A, 60 -Pole, 22 kA Interrupt HOM3060M200PCVP

Square D Homeline™ Main Breaker Load Center, 200 A, 120/240 VAC, 22 kA Interrupt, 3-Wire Wiring Configuration, Tandem Breaker, 60 Pole, 1 ph, 30 Spaces, 60 Circuits, Sheet Steel, Aluminum Bus, 4 AWG to 250 kcmil Wire, Plug-On Neutral Type, Flush, Surface Mount, NEMA 1, 23 to 104 deg F, 33.78 in H x 14.25 in W x 3.74 in D, Baked Enamel, Gray

Amperage Rating      :      200 A
Breaker Type      :      Tandem
Bus Material      :      Aluminum
Color      :      Gray
Dimensions      :      33.78 in H x 14.25 in W x 3.74 in D
Enclosure Type      :      NEMA 1
Finish      :      Baked Enamel
Interrupt Rating      :      22 kA
Material      :      Sheet Steel
Mounting Type      :      Flush, Surface
Neutral Type      :      Plug-On
Number of Circuits      :      60
Number of Poles      :      60
Number of Spaces      :      30
Phase      :      1 ph
Temperature Rating      :      23 to 104 deg F
Voltage Rating      :      120/240 VAC
Wire Size      :      4 AWG to 250 kcmil
Wiring Configuration      :      3-Wire
  • Plug-on neutral ready, with a plated aluminum bus
  • Engineered for fast installation and wire savings
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_QO124M100PC_Catalog.pdf
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_QO124M100PC_Instruction_Installation_Manual.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_HOM3060M200PCVP_Specification_Sheet.pdf
  • linkVideo Link https://youtu.be/dZfxxkYFDRQ
