Square D HOM816M200PFTRB HOM816M200PFTRB

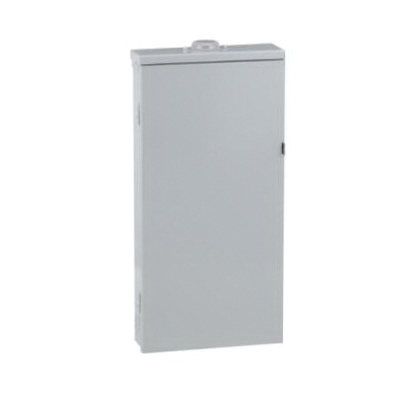

Square D HOM816M200PFTRB Load Center, 200 Amp, 120/240 VAC, 22 kA Interrupt

Square D Homeline™ HOM816M200PFTRB Load Center, 200 A, 120/240 VAC, 22 kA Interrupt

Square D Homeline™ HOM816M200PFTRB Load Center, 200 A, 120/240 VAC, 22 kA Interrupt HOM816M200PFTRB

Square D Homeline™ Load Center, 200 A, 120/240 VAC, 22 kA Interrupt, 3-Wire Wiring Configuration, 1 ph, 8 Spaces, 16 Circuits, Aluminum Bus, 4 AWG to 250 kcmil Wire, NEMA 3R, Baked Enamel, Gray, 23 to 104 deg F, 29.84 in H x 14.76 in W x 4.53 in D, Additional Information: Tin-Plated Busbar

Additional Information      :      Tin-Plated Busbar
Amperage Rating      :      200 A
Bus Material      :      Aluminum
Color      :      Gray
Dimensions      :      29.84 in H x 14.76 in W x 4.53 in D
Enclosure Type      :      NEMA 3R
Finish      :      Baked Enamel
Interrupt Rating      :      22 kA
Number of Circuits      :      16
Number of Spaces      :      8
Phase      :      1 ph
Temperature Rating      :      23 to 104 deg F
Voltage Rating      :      120/240 VAC
Wire Size      :      4 AWG to 250 kcmil
Wiring Configuration      :      3-Wire
  • Plug-on neutral ready
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_HOM816L125PC_Catalog.pdf
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_HOM1224L125PRB_Instruction_Installation_Manual.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_HOM816M200PFTRB_Specification_Sheet.pdf
