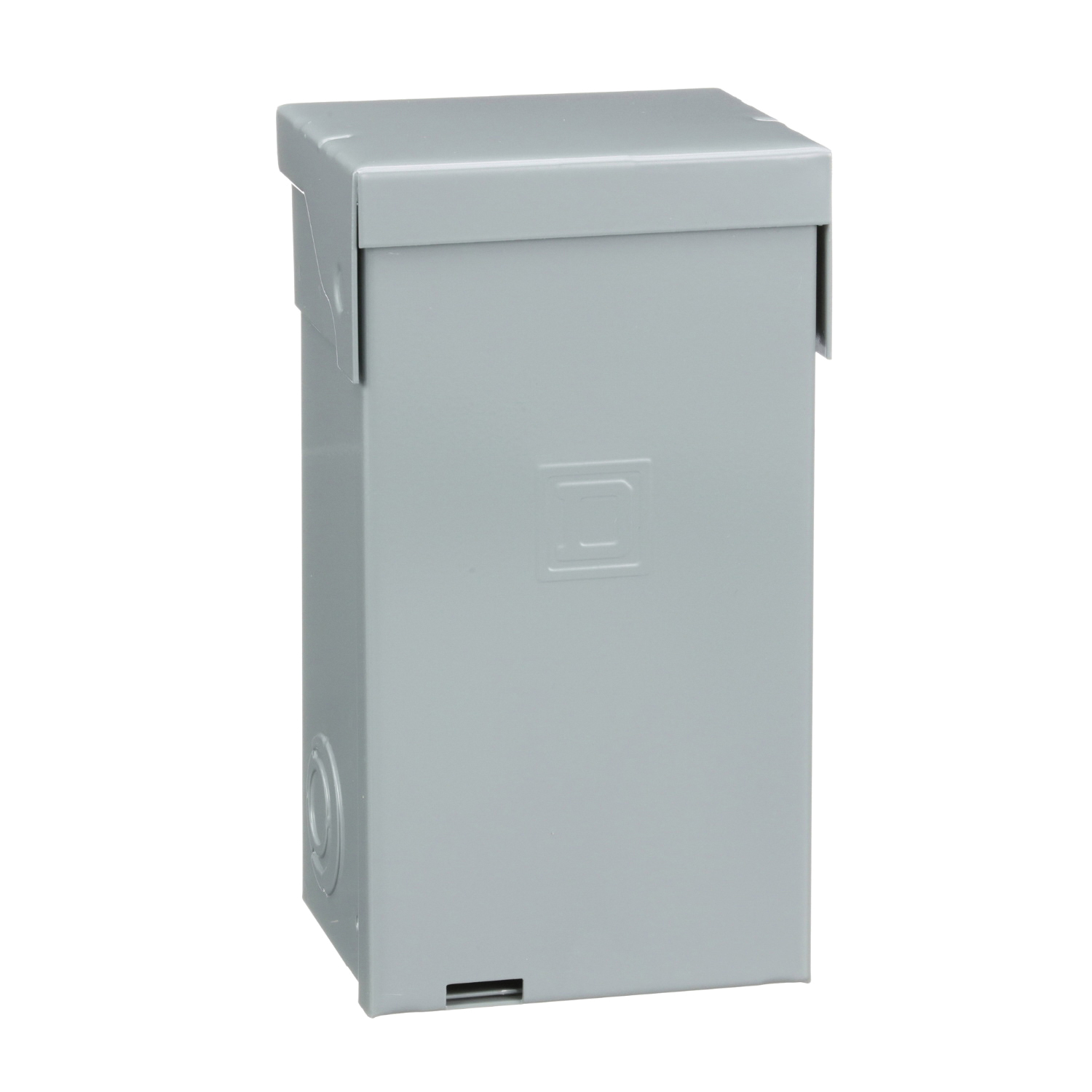

Square D HOME250SPA HOME250SPA

Square D HOME250SPA Load Center, 120/240 VAC, 50 Amp, Double Pole

Square D Homeline™ HOME250SPA Load Center, 120/240 VAC, 50 A, 2 -Pole

Square D Homeline™ HOME250SPA Load Center, 120/240 VAC, 50 A, 2 -Pole HOME250SPA

Square D Homeline™ Load Center, 50 A, 120/240 VAC, 3-Wire Wiring Configuration, 2 Pole, 1 ph, 2 Spaces, 4 Circuits, 8 to 6 AWG Wire, NEMA 3R, 23 to 104 deg F, 9.37 in H x 4.88 in W x 4.02 in D, Baked Enamel, Gray

Amperage Rating      :      50 A
Color      :      Gray
Dimensions      :      9.37 in H x 4.88 in W x 4.02 in D
Enclosure Type      :      NEMA 3R
Finish      :      Baked Enamel
Number of Circuits      :      4
Number of Poles      :      2
Number of Spaces      :      2
Phase      :      1 ph
Temperature Rating      :      23 to 104 deg F
Voltage Rating      :      120/240 VAC
Wire Size      :      8 to 6 AWG
Wiring Configuration      :      3-Wire
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_QO1515CP_Catalog.pdf
  • pdfFull Engineering Drawing https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_HOME250SPA_Full_Engineering_Drawing.pdf
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_HOM24L70RBCP_Instruction_Installation_Manual.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_HOME250SPA_Specification_Sheet.pdf
  • videoVideo Link https://www.youtube.com/embed/B5LRuRQEvMI
