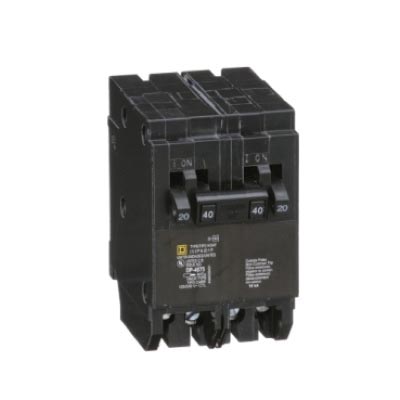

Square D HOMT2020240 Quad Tandem Miniature Circuit Breaker, 120/240 VAC, 20 Amp, 40 Amp, 10 kA Interrupt

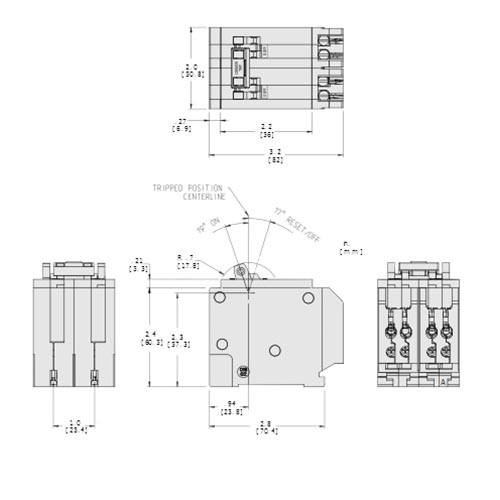

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This HOMT circuit breaker is a quad tandem breaker. This quad tandem breaker occupies two HOM pole spaces. This quad tandem circuit breaker consists of a two-pole breaker in the middle and a single breaker on each side. This quad tandem circuit breaker provides a standard circuit protection and is HACR rated. The two-pole breaker is rated 40 A at 120/240 VAC and the single pole breakers are rated 20 A and 20 A at 120/240 VAC. This circuit breaker provides 10 kA breaking capacity. The 2 pole breaker of this quad tandem breaker will accept 14 to 6 AWG copper or 12 AWG to 6 AWG aluminum wire. The single pole breakers of this quad tandem breaker will accept 14 AWG to 8 AWG copper or aluminum wire. The tandem breaker is 3.13 in H, 2 in W and 2.98 in D.
Square D Quad Tandem Miniature Circuit Breaker, Homeline™ Series, 20 A, 40 A, 120/240 VAC, Interrupt Rating: 10 kA, Number of Poles: 3, Connection Type: Box Lug, Frame Type: HOM, 12 to 6 AWG, 12 to 8 AWG, 14 to 6 AWG Wire, Plug-In Mounting, 104 deg F, 2 in W, 2.98 in L, 3.13 in H

• Catalog https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_HOMT2020240_Catalog.pdf
• Instruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_HOMT2020240_Instruction_Installation_Manual.pdf
• Video Link https://www.youtube.com/embed/BN-HQQVJQuY
