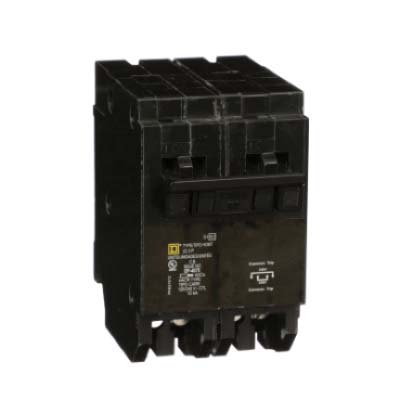

Square D HOMT230250 Quad Tandem Miniature Circuit Breaker, 120/240 VAC, 30 Amp, 50 Amp, 10 kA Interrupt

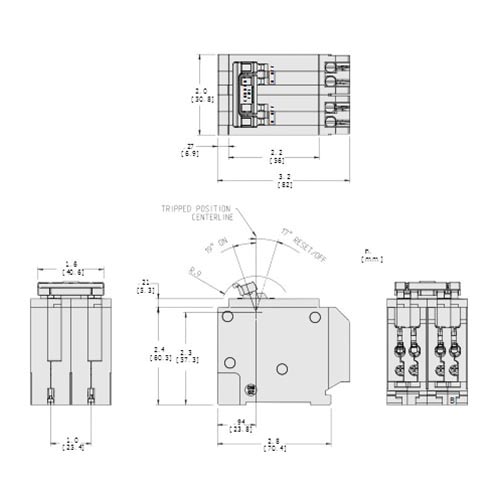

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. The HOMT circuit breaker is two tandem 2 pole thermal magnetic circuit breakers manufactured in tandem. This quad tandem breaker occupies two HOM pole spaces. This quad tandem circuit breaker consists of a two-pole breaker and a two-pole breaker. This quad tandem circuit breaker provides a standard circuit protection and is HACR rated. One of the two-pole breaker is rated 30A at 120/240 VAC and other two-pole breaker is rated 50 A at 120/240 VAC. This circuit breaker provides 10 kA breaking capacity. The 30 A two-pole breaker of this quad tandem breaker will accept 14 AWG to 8 AWG copper or aluminum wire. The 50 A two-pole breaker of this quad tandem breaker will accept 14 to 6 AWG copper or aluminum wire. The tandem breaker is 3.13 in H, 2.00 in W and 2.98 in D.
Square D Quad Tandem Miniature Circuit Breaker, Homeline™ Series, 30 A, 50 A, 120/240 VAC, Interrupt Rating: 10 kA, Number of Poles: 2, Connection Type: Box Lug, Frame Type: HOM, 14 to 6 AWG, 14 to 8 AWG Wire, Plug-In Mounting, 104 deg F, 1.97 in W, 3.29 in L, 3.13 in H

• Catalog https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_HOMT2020240_Catalog.pdf
• Instruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_HOMT2020240_Instruction_Installation_Manual.pdf
• Video Link https://www.youtube.com/embed/BN-HQQVJQuY
